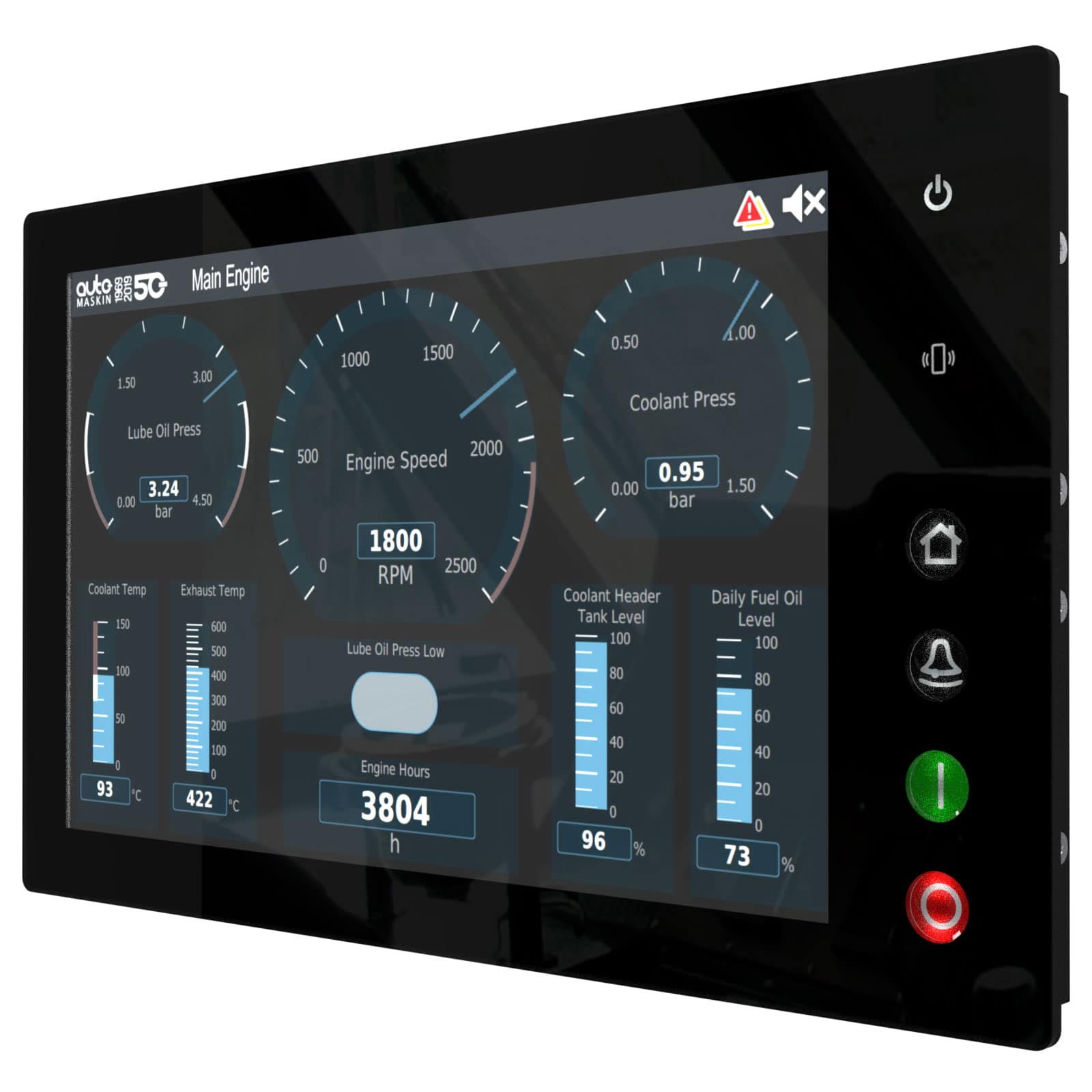

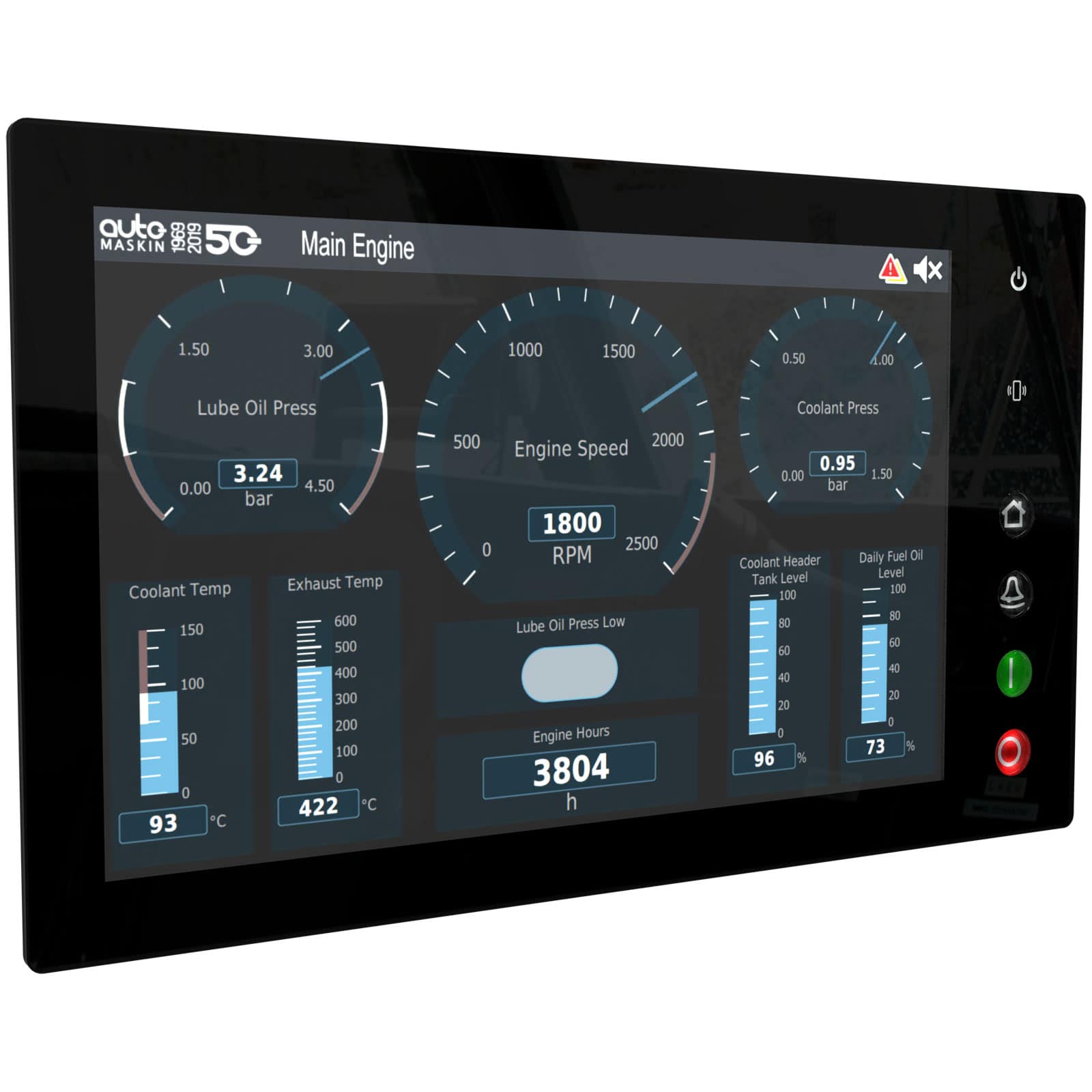

The RP 480i is a high resolution, sunlight capable remote touchscreen panel for multiple engine configurations with Marine Pro engine controllers (DCUs) or as a stand alone remote panel. Multiple languages, intuitive menus with simple icons and the latest in graphical interfaces.
The RP 480i is a high resolution, sunlight capable remote touchscreen panel for multiple engine configurations with Marine Pro engine controllers (DCUs) or as a stand alone remote panel. Multiple languages, intuitive menus with simple icons and the latest in graphical interfaces.
The RP 480i can be used as a replacement for the RP 410(E) and of course, retains several IACS Society Approvals.
The RP 480i can monitor and control up to eight DCU engine controllers in the Auto-Maskin 200 or 400 Series. The panel is also truly self-configuring. Any changes in any engine controller’s configuration are immediately reflected into the RP 480i without any operator actions.

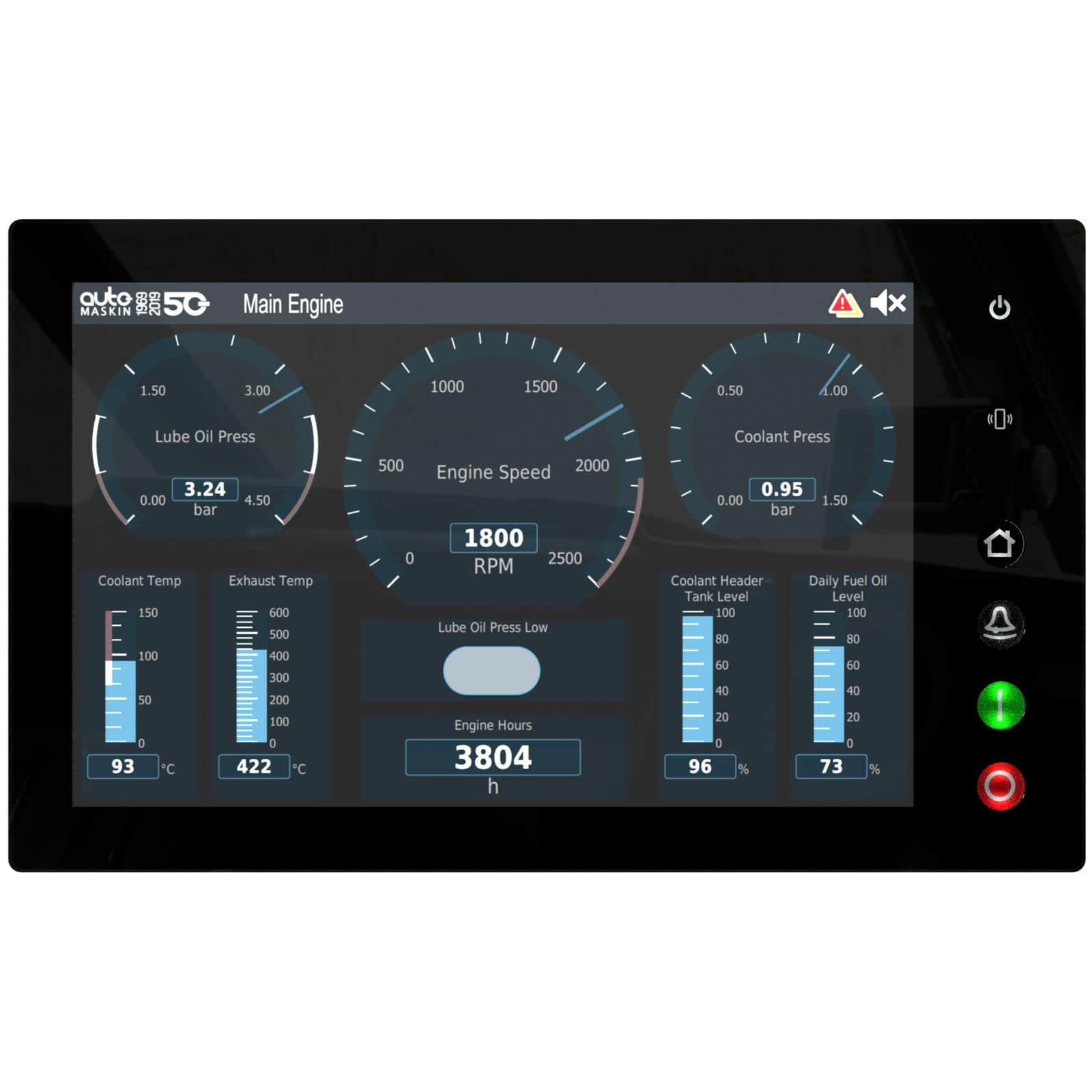

The ultra-crisp touch screen, colour graphics, and fully protected front and rear provide the best readability and reliability under all weather conditions. Capable of displaying up to eight engines with a complex set of sensor data.
The panel connects to DCUs using only a standard Ethernet cable, and will automatically “find” any DCUs that are connected to the network. No configuring, no setup, no hassle. Additionally, when connected, the RP will update itself with any DCU configuration changes automatically, providing seamless consistency across all panels.
Modern effective graphics, included dedicated night modes provide clear precise information to operator. The panel has its own dedicated flexible I/O allowing easy integration into vessel sub systems, as well as several options for data integration via J1939, NEMA2000 or Modbus interfaces. With features looking into the feature available now, such as smartphone recognition, proximity sensors and NFC tags, the RP 480i is fully specified to take your vessel into tomorrows electronic enviroment
The RP 480i can be attached to the following products:
Note! When replacing an old Marine Pro unit with a new we recommend to update the Firmware of other vital components as well.

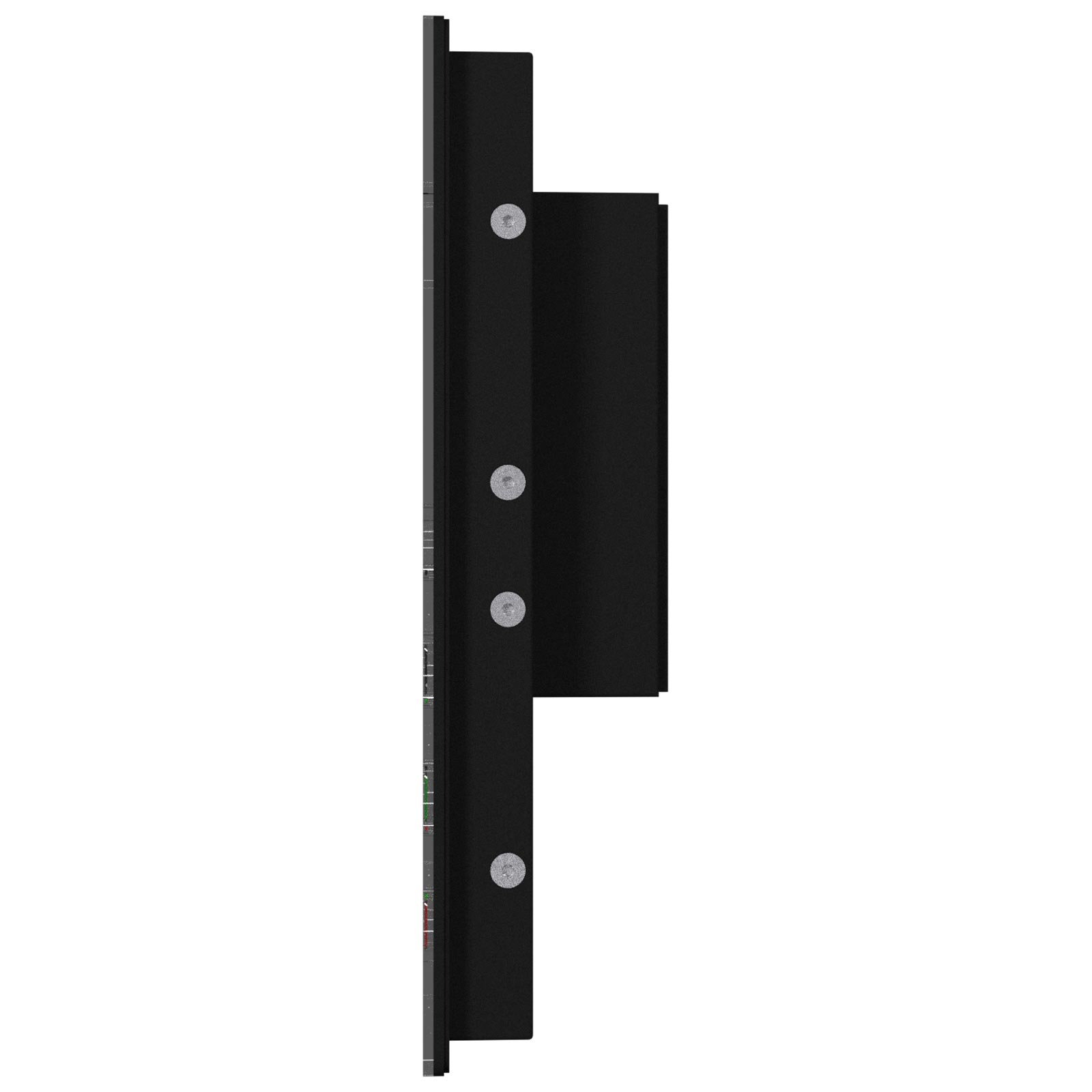

| Size | w 333 x h 202 x d 51 mm |
|---|---|
| Cut out | w 325 x h 194 mm |
| Weight | 3.0 kg |
| Screen | 12.1", 16M colors, Resolution 1280 x 800 pixels |
| IP | IP56 (Front) |
| Power Supply | 24/12 VDC, Min 8 VDC, Max 32 VDC |
