Auto-Maskin – ProConnect B4.5

ProConnect B4.5

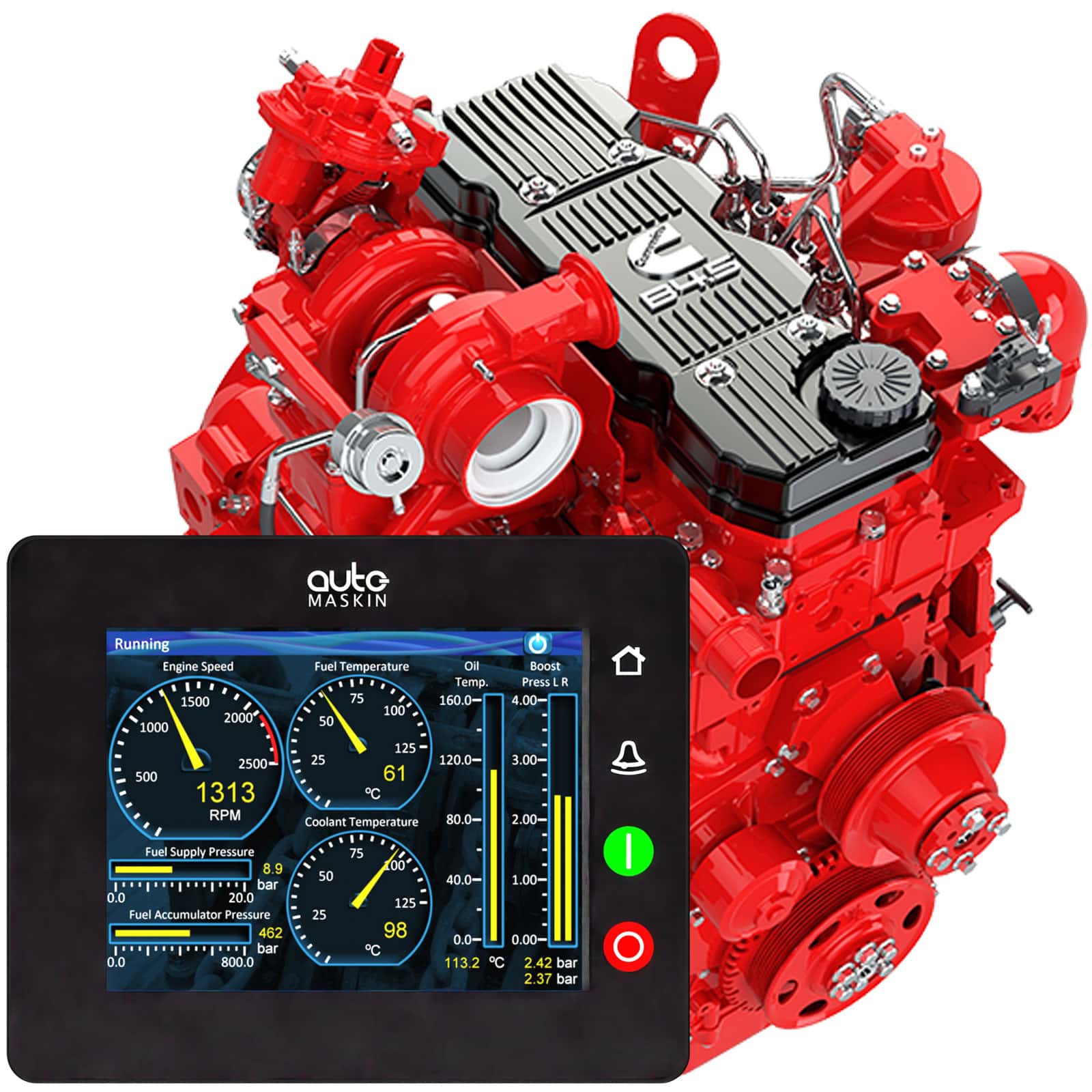

The ProConnect B4.5 is a “Plug and Play” pre-wired control system for Cummins B4.5 engines. Cyber Security certified.

SKU: 1501025 (10 ft / 3 m) | 1500987 (25 ft / 7.6 m) | 1500998 (50 ft / 15.2 m) | 1501027 (75 ft / 22.8 m) Categories: Engine Controllers, ProConnect Tags: Connection Kit, Engine Controller, IP56, Marine Pro 200, Touchscreen

Description

The fastest install there is

ProConnect is a plug-and-play harness kit for the DCU 210E Engine Controller, designed for the quickest, cleanest installation possible. Each kit is pre-engineered for specific engine models and includes all key connectors, ready-to-use configuration files, and even a key switch.

Combined with the DCU 210E’s robust design and configurable I/O, ProConnect lets you connect, power up, and get running in no time.

Connect your Cummins B4.5

A “Plug and Play” pre-wired control system for Cummins B4.5 engines

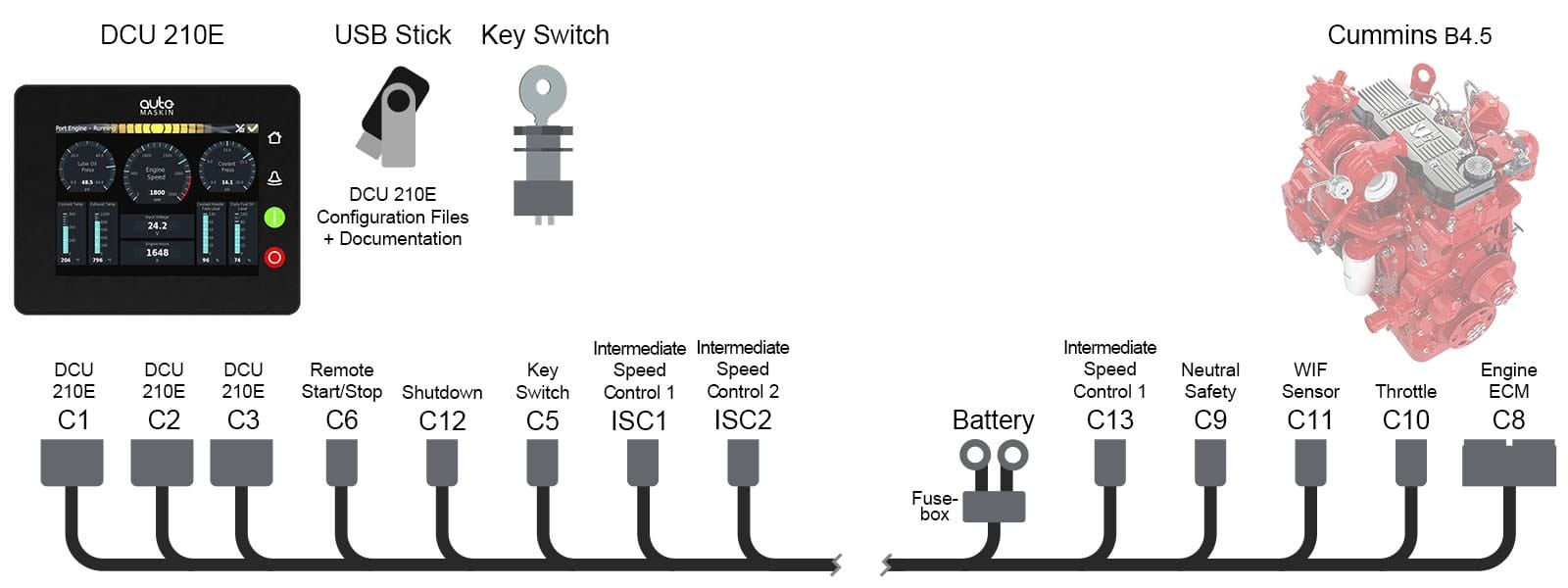

Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E Engine Controller and a USB stick with pre-defined configuration files
Pre-defined configuration files means no programming
The DCU 210E features and functions complement the engine capability
Marine Broadcast compatible for cloud based remote monitoring
No special software is required; if any additional configuration is needed, it can be done using any web browser
The full system warranty from Auto-Maskin means “Peace of Mind”
Supported globally by the Auto-Maskin network

Why customers choose ProConnect

Fast, clear icon-based information promotes safe and efficient operation
Pre-engineered solution means fast, low-cost installation
Quality-assured solution presents low business and operational risk
Aligns to same architecture as Cummins C Command
Looks really good!

The ProConnect kits:

Additional information

Harness length	10 ft / 3 m, 25 ft / 7.6 m, 50 ft / 15.2 m, 75 ft / 22.8 m
Attributes for:	DCU 210E
Size	( Attributes for DCU 2xx panels), w 167 x h 135 x d 68 mm
Cut out	w 156 x h 124 mm, Access depth 90 mm
Screen	262144 colors, Resolution 640 x 480 pixels
IP	IP56
