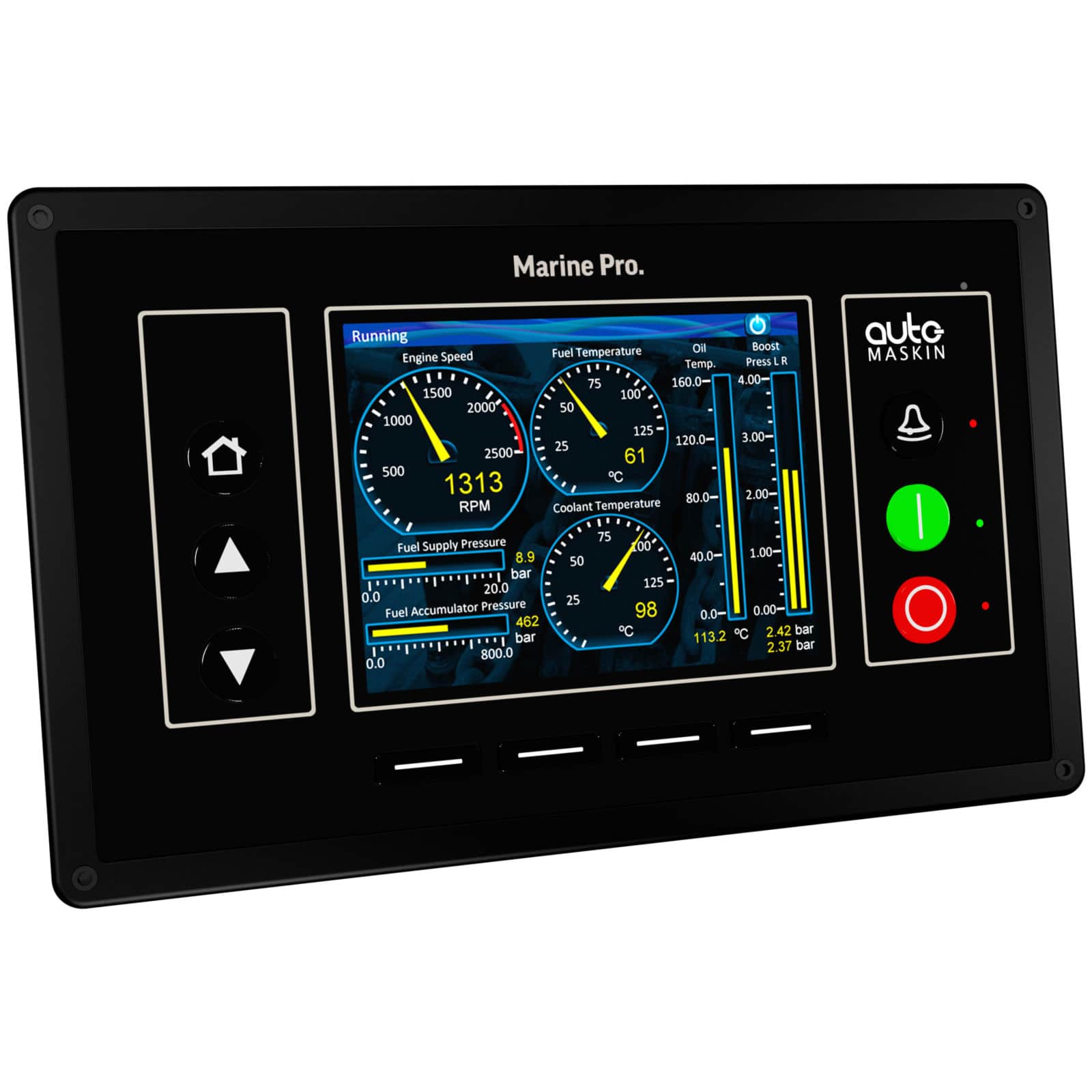

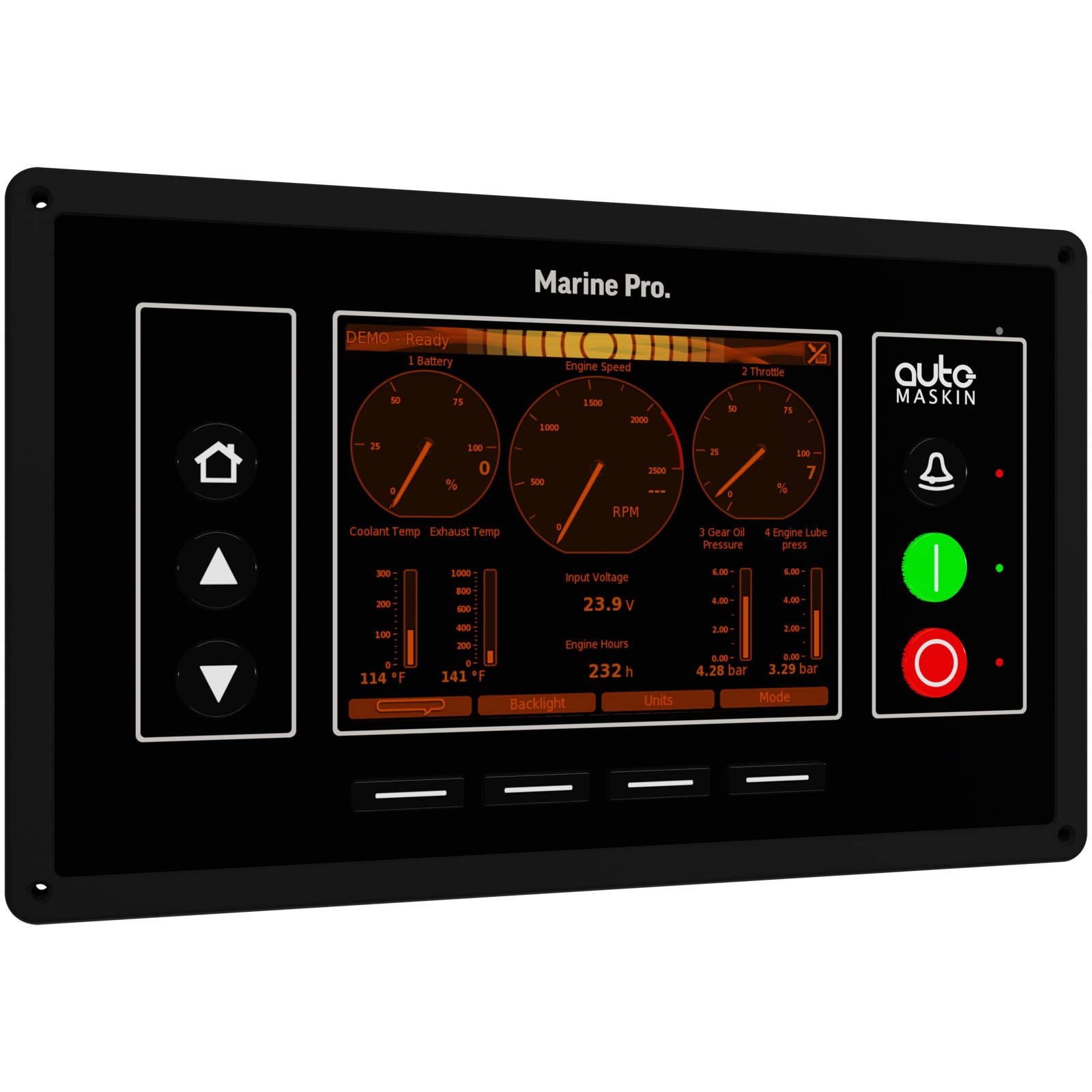

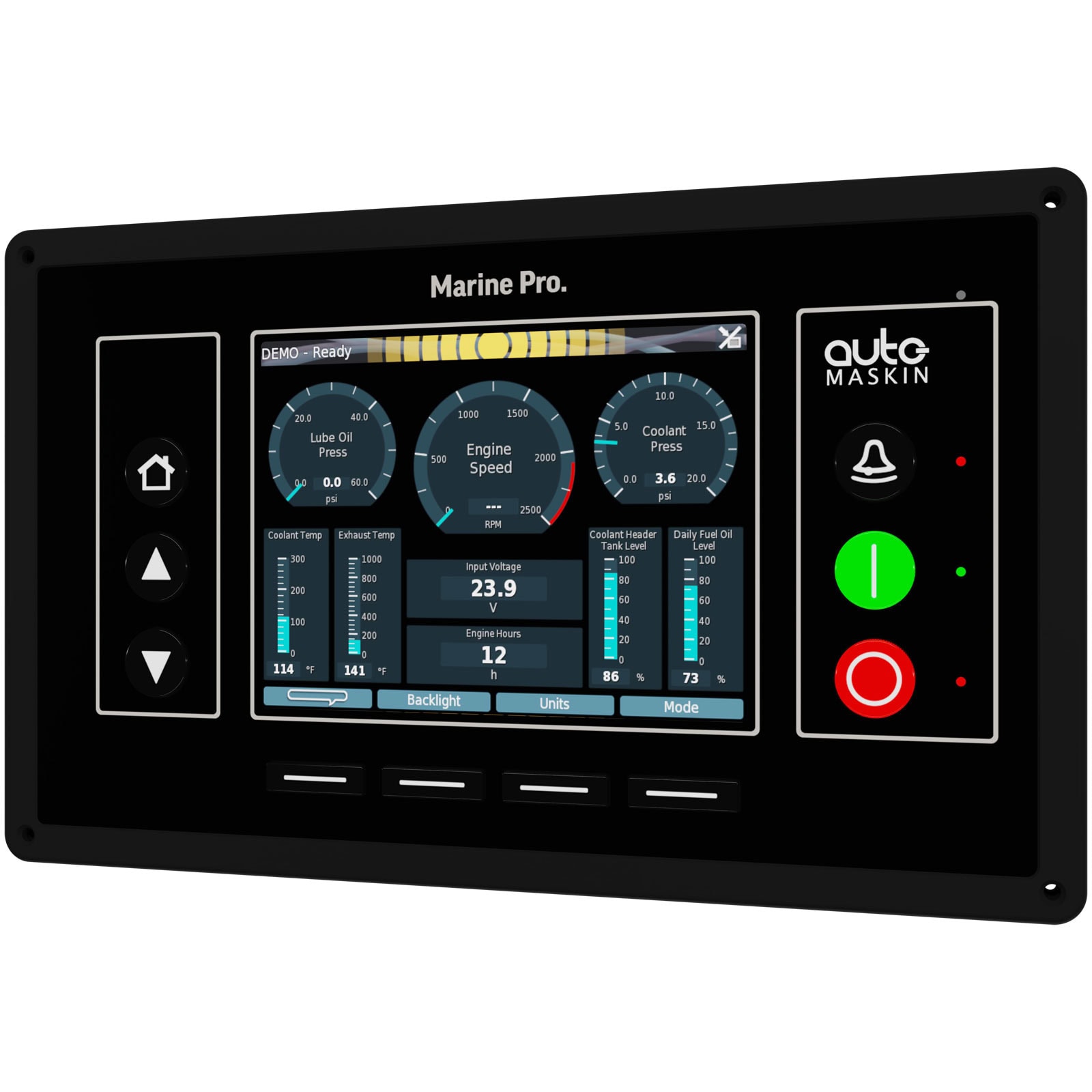

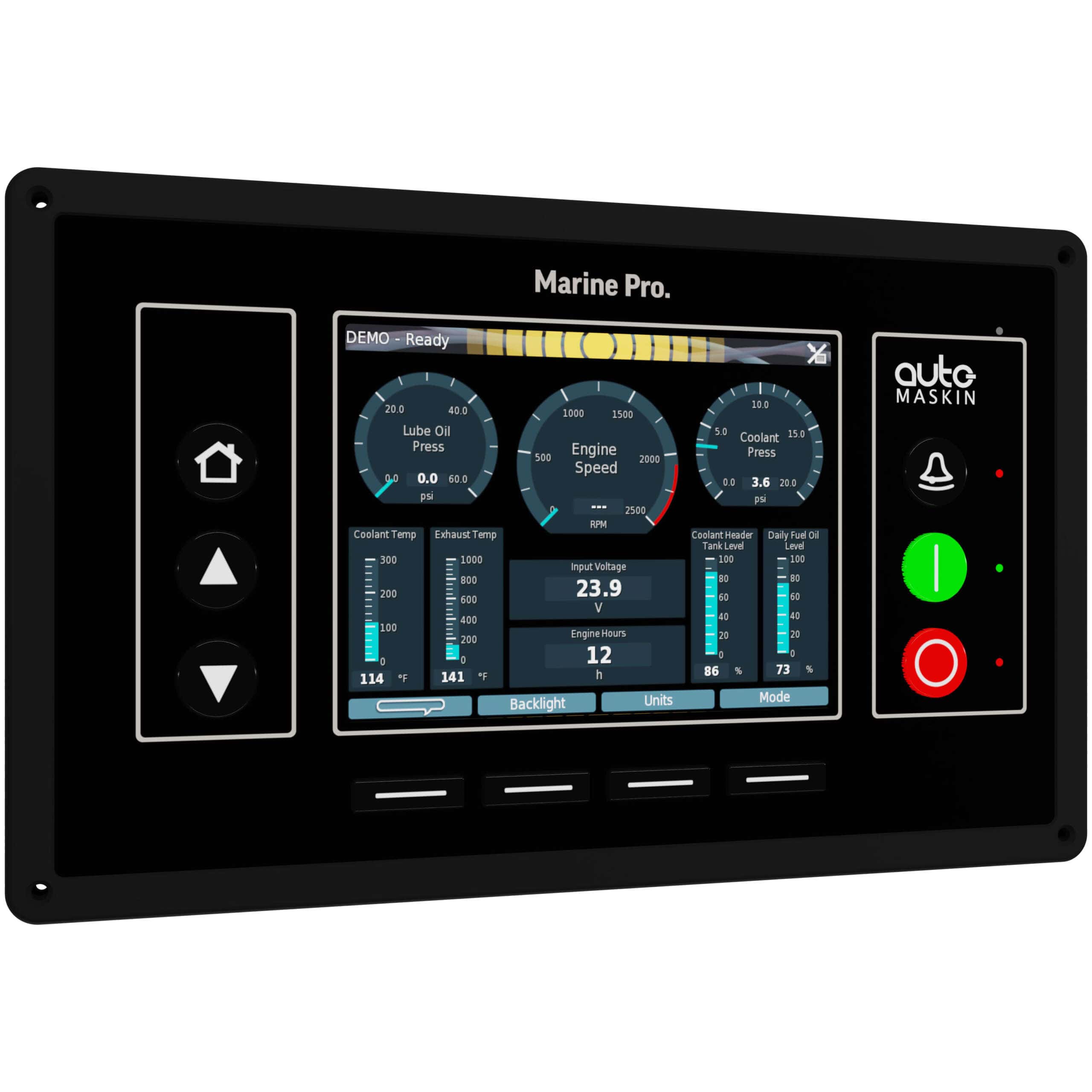

DCU 410E Engine Controller

The DCU 410E is the base building block to build a supervision system for both variable speed (propulsion or pumps) or fixed speed (generating set) diesel engines.

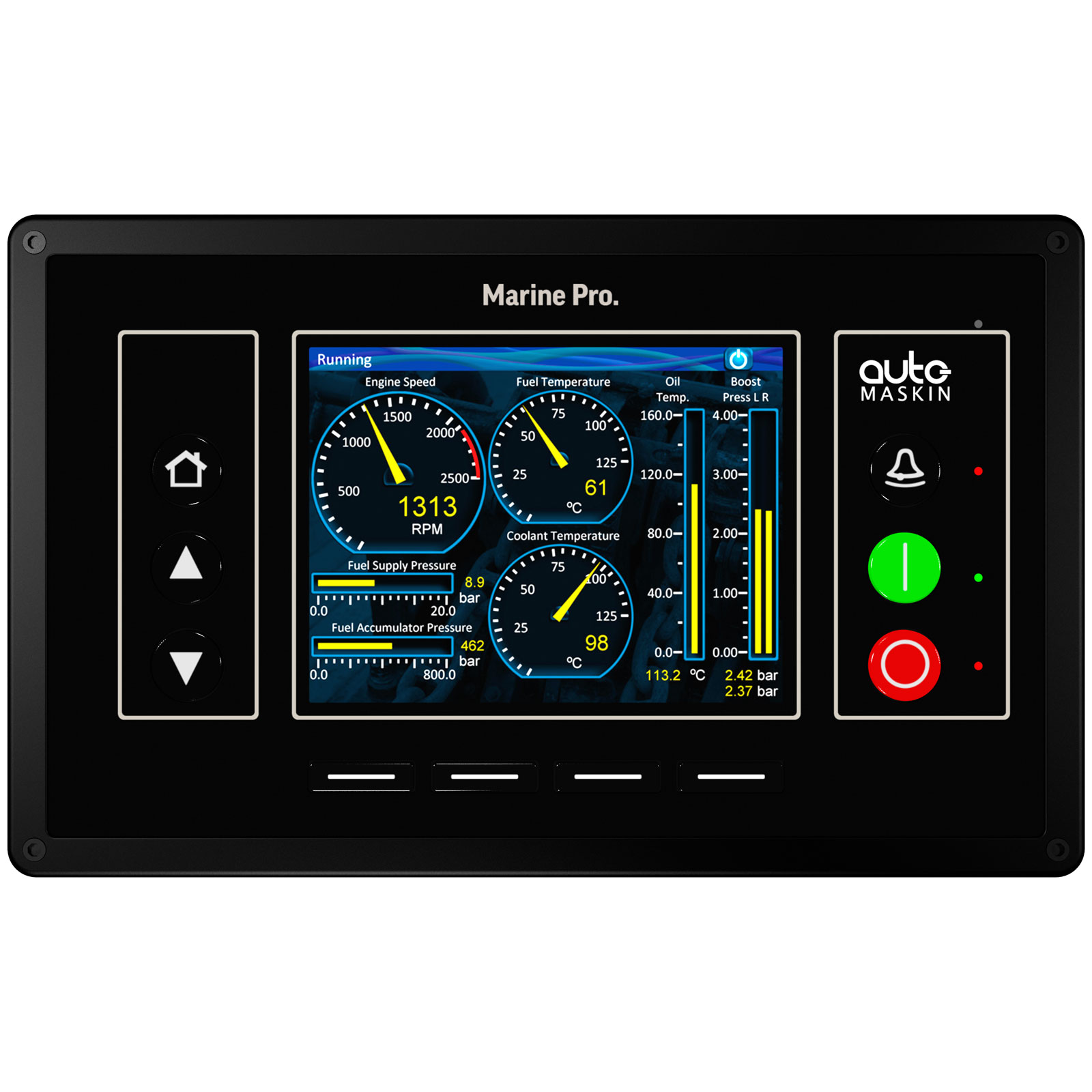

It is a compact unit comprising of a front face utilizing a 5.7” colour screen with 70 PPI resolution, which can be mounted to almost any flat surface with a cut-out.

Description

The DCU 410E is the base building block to build a supervision system for both variable speeds (propulsion or pumps) or fixed speed (generating set) diesel engines.

It is a compact unit comprising of a front face utilizing a 5.7” colour screen with 70 PPI resolution, which can be mounted to almost any flat surface with a cut-out.

The DCU 410E accepts input data from the engine J1939 CAN bus link plus multiple physical I/O, which can be expanded with expansion units. It can communicate with the ships alarm system on CANopen and Modbus RTU, as well as Modbus TCP on standard Ethernet.

The DCU 410E also provides engine control logic and the outputs required, including but not limited to, pre-lubrication control, start & stop signals, both ETR and ETS, plus remote interfaces for these functions.

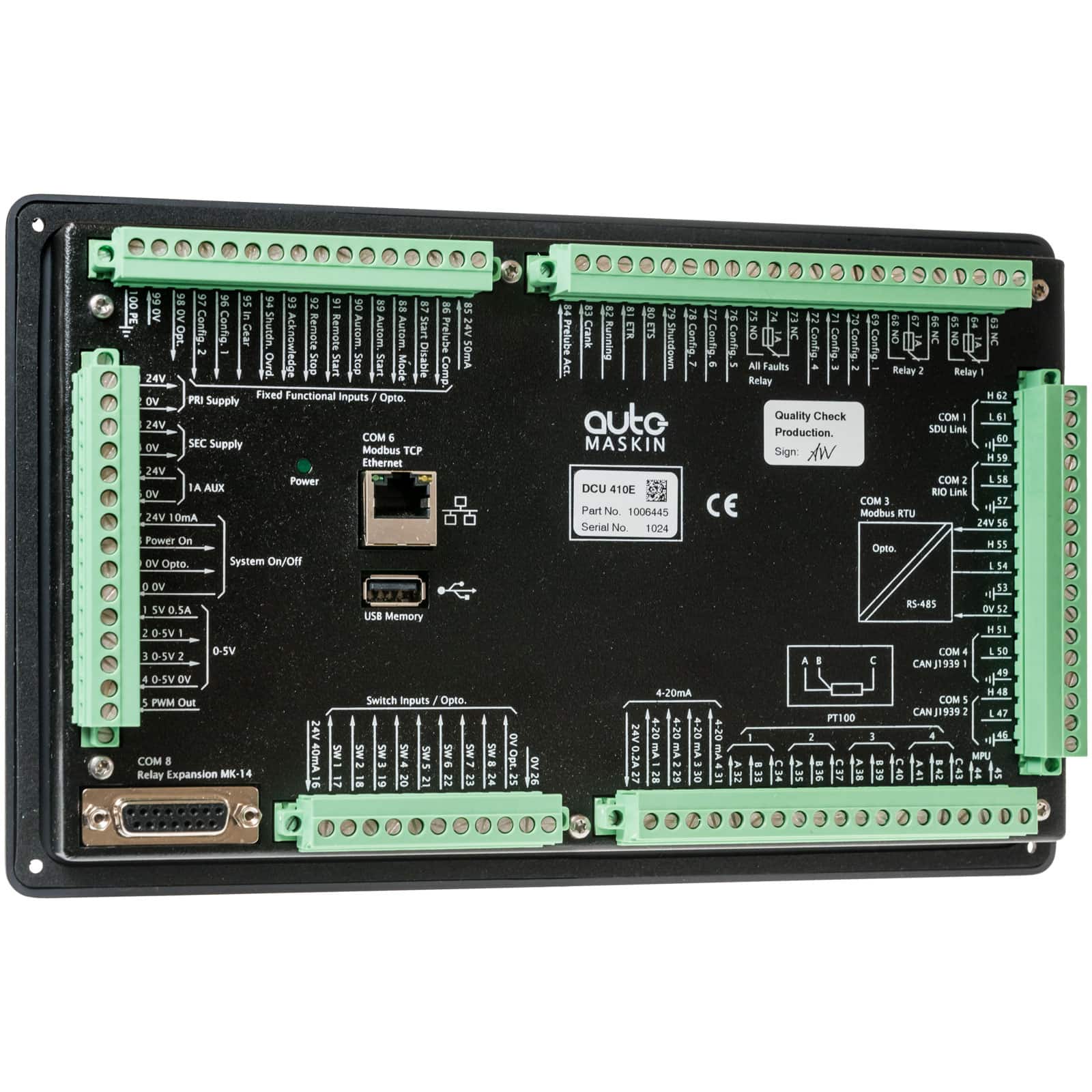

Connections are made via clearly labelled connectors on the rear of the panel and need no special tools.

Finally, the panel is fully prepared for remote panel integration and works seamlessly with the Auto-Maskin remote panel(s) and the Marine Broadcast, a cloud-based service giving users on any remote device running a standard web browser access to the alarm list of the connected vessel.

Why do more customers select the DCU 410E

  • “Plug and Play” connectivity to multiple remote panels
  • Muliple language easily readable color display
  • Accepts multiple sensor standards and twin J1939 networks
  • IACS Class Approved
  • Intuitively configurable using the built-in web server
  • No special software, cables or tools required
  • Marine Broadcast compatible for cloud based remote monitoring

The ability of the unit to connect to other ships systems without sophisticated software or specialist tools makes it installable and usable by non-experts. Customizable by a simple laptop with a web browser and a standard Ethernet cable, the password-protected areas allow more flexible configuring or customization when required.

With a literally “plug & play” capability, the DCU 410E configures all other elements of the Marine Pro system automatically.

  • Holds internally up to 50 customer selectable configuration files via a “startup wizard”
  • Connectable to multiple engine types and or ships systems
  • Suitable for fixed and variable speed applications
  • Pre printed connection function on units
  • Simple connectivity – no special tools
  • Pre loaded configurations to meet Classification Society rules for UMS
  • Ethernet connectivity means plug and play within global standards
  • Simple two wire communication via Modbus to Marine Pro I/O expansion modules
  • Affordable expandability to create a small ships alarm system
  • 5.7” Colour screen means clear, precise indications
  • Historical event list
  • Displays engine faults in real text
  • More than ten languages changeable by crew
  • Clear colour user interfaces
  • Icons rather than text
  • No specialist programming or configuration skills
  • Web server built in
  • Local or remote updating

Compatible products

The DCU 410E can be attached to the following products:

Remote Panels

Note! If replacing an old DCU with a new it is recommended to update the RP Firmware as well or make sure it is at the same or higher level than the DCU.

Legacy Remote Panels

Note! If combining a new E-Series DCU with an old Legacy Remote Panel it is recommended to retrieve and use the old DCU Configuration file in order to avoid unknown messages displayed at the Remote Panel. In addition, it is recommended to update the Remote Panel Firmware to the latest revision available.

Expansion I/O

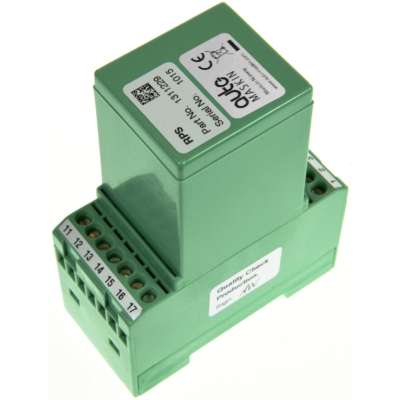

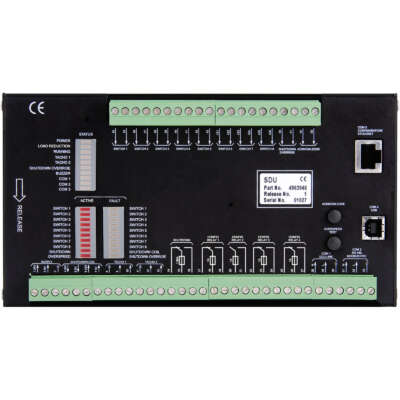

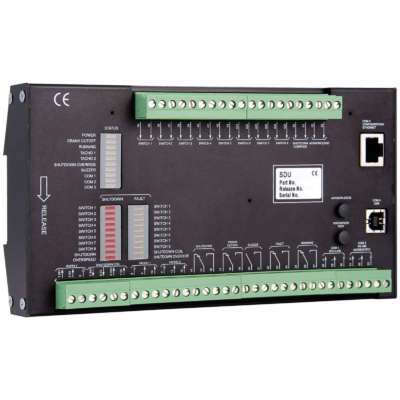

Safety Modules

Additional information

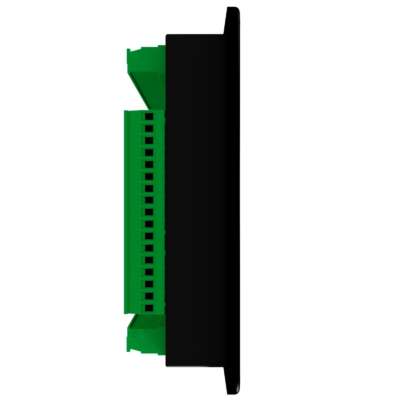

Size

w 260 x h 160 x d 60 mm

Cut out

w 242 x h 141 mm

Weight

1.3 kg

Screen

262144 colors, 5.7", Resolution 640 x 480 pixels
