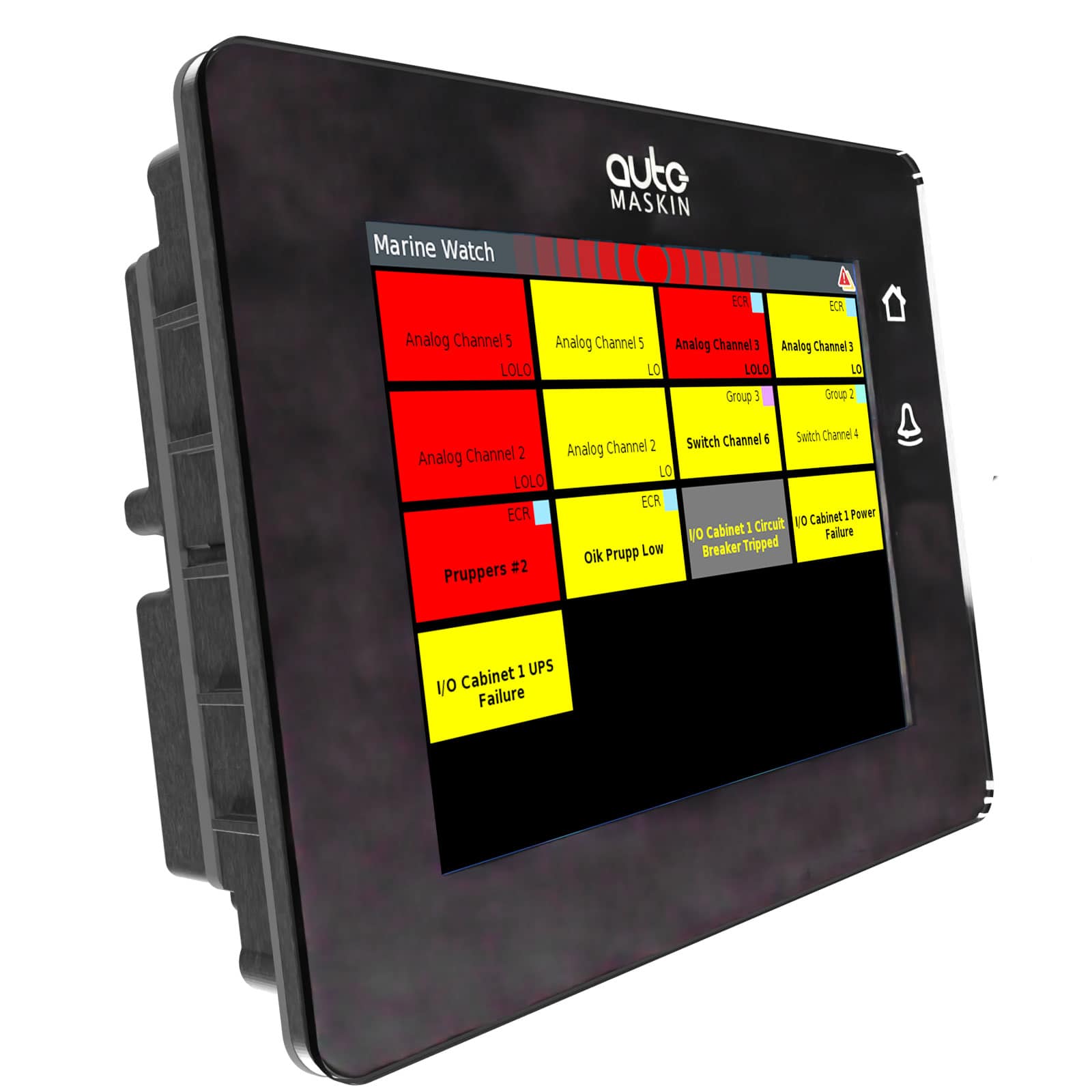

The Marine Watch S-ACE Annunciator Panel indicates any event in the Marine Watch S Series network.
The panel attracts attention with a buzzer and flashing banner, and the operator can silence the buzzer. The events are sorted chronologically and listed in a standard alarm grid fashion.
The Marine Watch S-ACE Annunciator Panel indicates any event in the Marine Watch S Series network. It connects into the same network and is ready for use.
Apart from an IP address, the panel requires no configuration. It will always be in sync with the configuration of the S-ONE Alarm Panel.
A new event will activate the buzzer and flash the banner in the severity colour. The operator can silence the buzzer and see the status of events.
All events in the system are clearly indicated as text on the colour touch screen. The same text strings as configured on the S-ONE Alarm Panel are being displayed in case of an event.
The events are displayed in a standard alarm grid fashion. It is sorted chronologically, with the newest event at the start of the list.
The built-in alarms include loss of network communication.
There is no practical limit to the number of S-ACE Annunciator Panels in a network.
There is little to no signal latency between panels (fractions of fractions of a second).
By design, an event can be silenced on the S-ACE, but must be acknowledged on the S-ONE Alarm Panel.
This product is compatible with the following products:
| Size | w 167 x h 135 x d 68 mm |
|---|---|
| Cut out | w 156 x h 124 mm, Access depth 90 mm |
| Screen | 262144 colors, 5.7", Resolution 640 x 480 pixels |
| IP | IP56 |
| Power Supply | 24/12 VDC, Min 8 VDC, Max 32 VDC |
