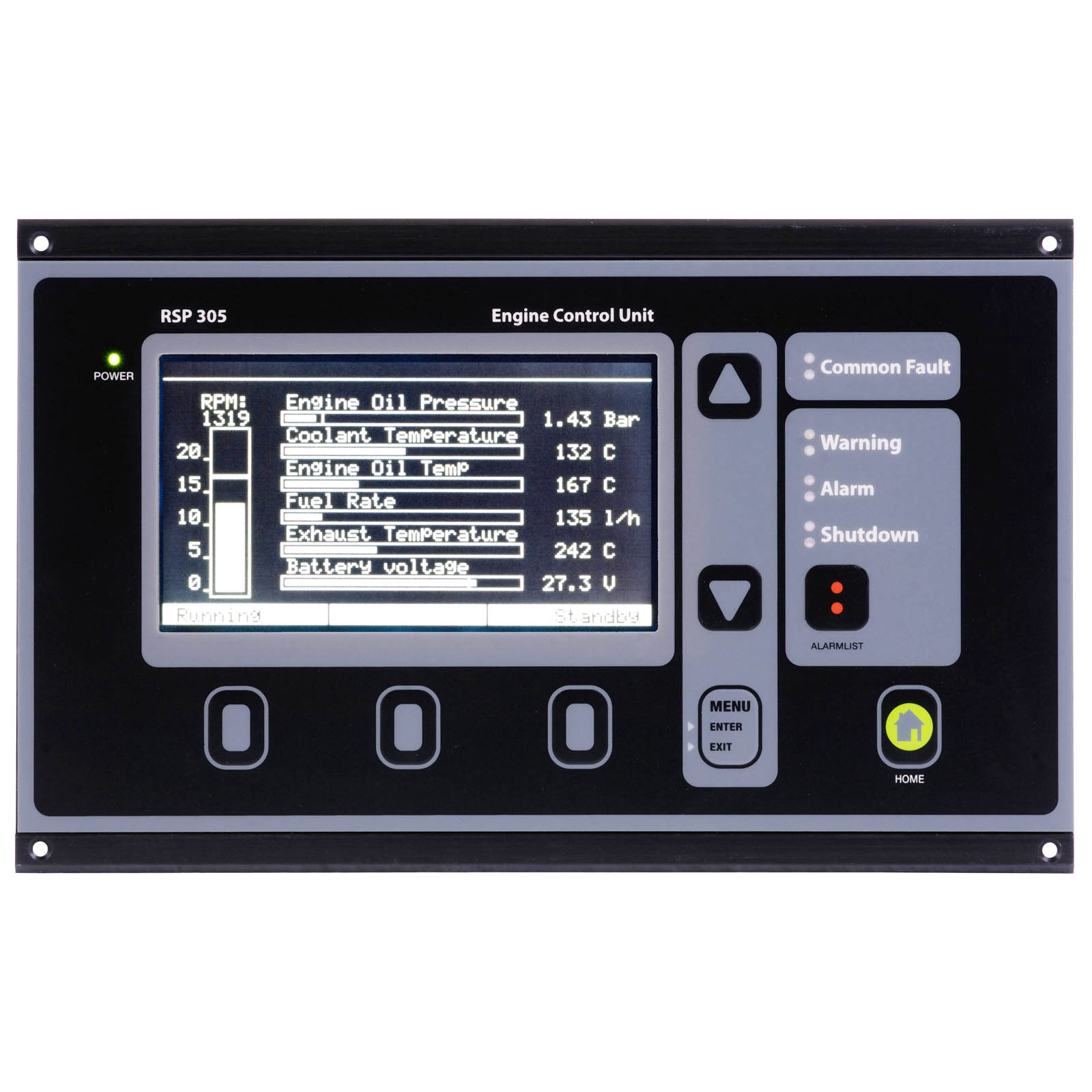

RSP 305 Remote Panel
Description
Where remote monitoring of multiple DCU 305 units are required, the RSP 305 should be utilized. The RSP 305 configures itself to the DCU 305 network automatically upon connection, and up to four DCU 305 units can be connected to each RSP 305.
Nearly all information available locally on the DCU 305 engine panel is also available on the RSP 305 remote panel, displayed in the same way using the same high contrast / easy read screen.
Naturally, having the same user interface on the engine room panel and on the remote panel makes vital information available fast.
The RSP 305 remote panel supports both the DCU 305 R2 and the DCU 305 R3 and R3 LT, even used together in the same network.
Additional information
| Size | w 250 x h 160 x d 60 mm |
|---|---|
| Cut out | w 230 x h 146 mm |
| Weight | 1.3 kg |
| Screen | 5.6", Resolution 240 x 128 |
