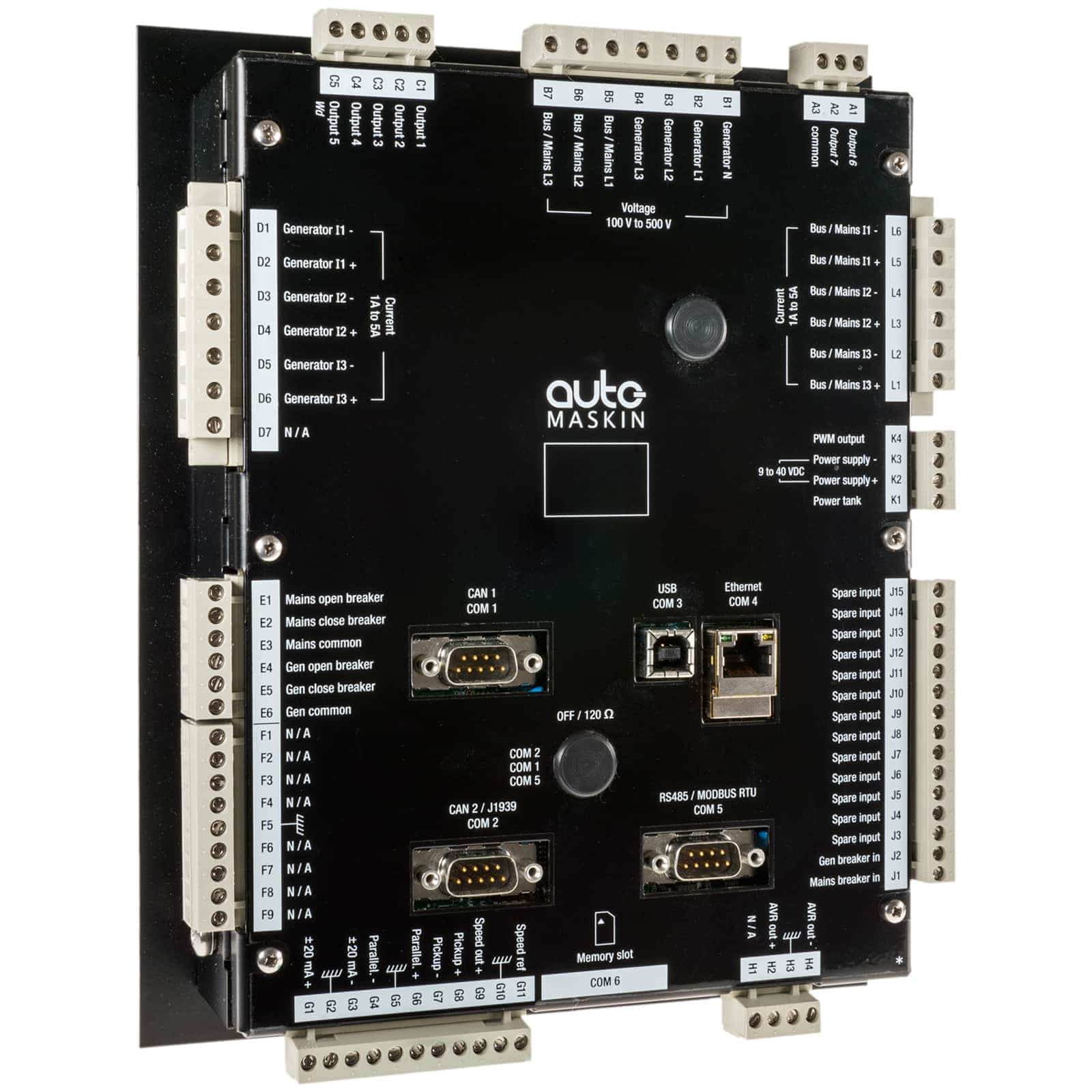

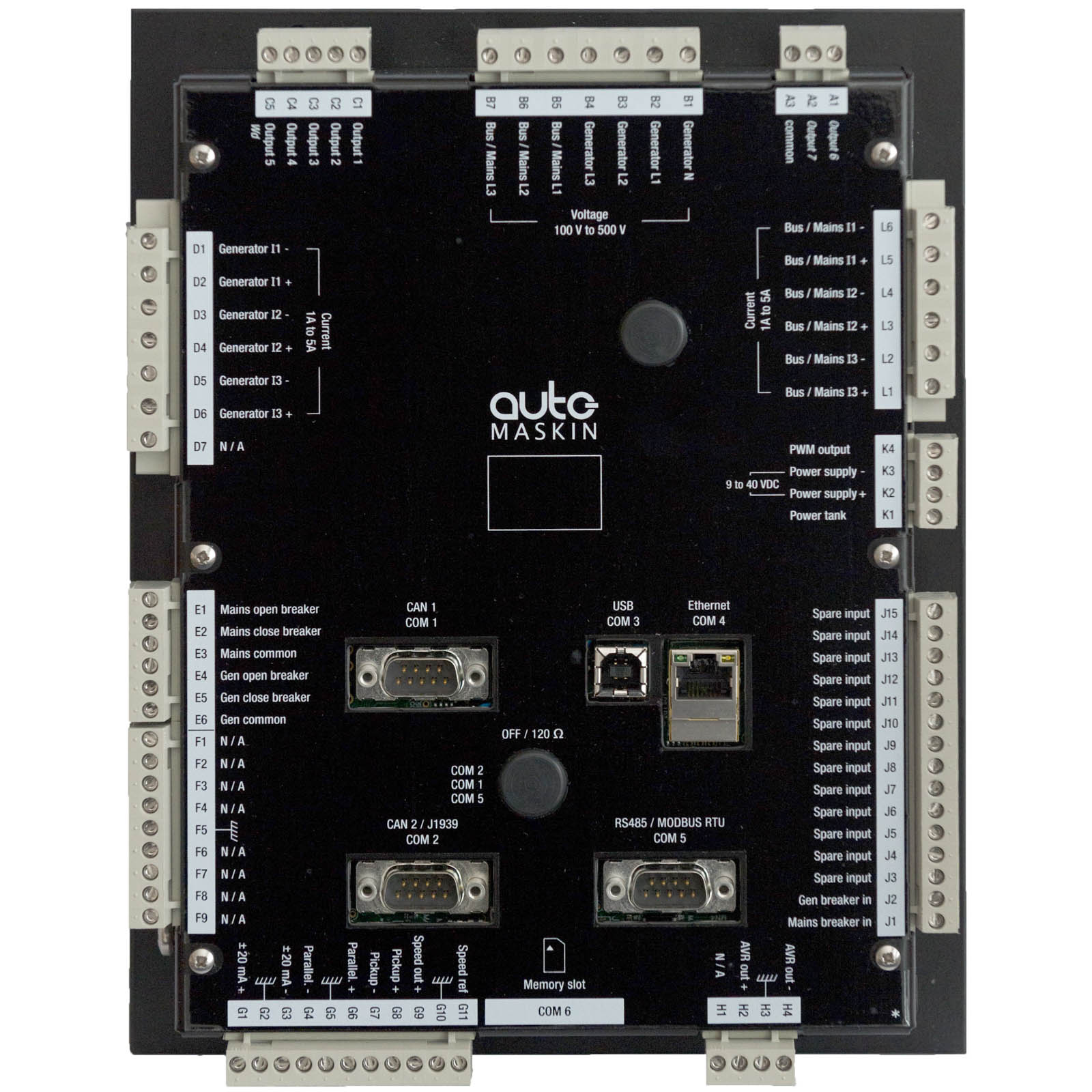

LSU 408 Load Sharing Unit

LSU 408 Loadshare and Synchronizing Unit

LSU 408 Load Sharing Unit - Image 3

LSU 408 Load Sharing Unit - Image 4

LSU 408 Load Sharing Unit

Load share and synchronising system, the LSU 408 is the obvious choice when outstanding flexibility and safety matters.

SKU: 1311188 Category: Power Management Tags: AC Interface, Load Sharing, Power Management, Synchronization

Description

At a glance

Fully compatible with speed governors, ECM’s and AVRs
Static and Dynamic synchronization
Ethernet, 2x CAN bus and Modbus RS485
Dedicated configurable I/O for breaker control
Load dependent start-/stop
Redundancy on loadsharing lines
Heavy consumer function
Watchdog output to ensure unit-CPU operation.

Why choose LSU 408

Stand-alone unit independent of DCU 410 or DCU 210
Interfaces to 200 and 400 Series DCUs
Dedicated templates for LSU 408 parameters displayed on DCU and RP
I/O Flexibility
Easy configuration – Web server
Generator- and mains protections
Embedded PLC functionality

Load share and synchronising system, the LSU 408 is the obvious choice when outstanding flexibility and safety matters.

Backed by the know-how, service and support of Auto-Maskin. When connected, the DCU will automatically add a new page for generator parameters.

Product Support

Documents

Engineering/Service Support

LSU 408 Tuning Tool
