SDU 404 Safety Shutdown Unit

The SDU 404 joins its larger SDU 410 to provide the independent shutdown capability required by Classification societies. Certified by DNV (pending), this 4 channel unit provides the key functionality and cost-effective price to align to smaller engines requiring this level of global compliance.

Description

The SDU 404 provides the independent shutdown capability required by classification societies. Certified by DNV (pending), this 4 channel unit provides the key functionality and cost-effective price to align to smaller engines requiring this level of global compliance.

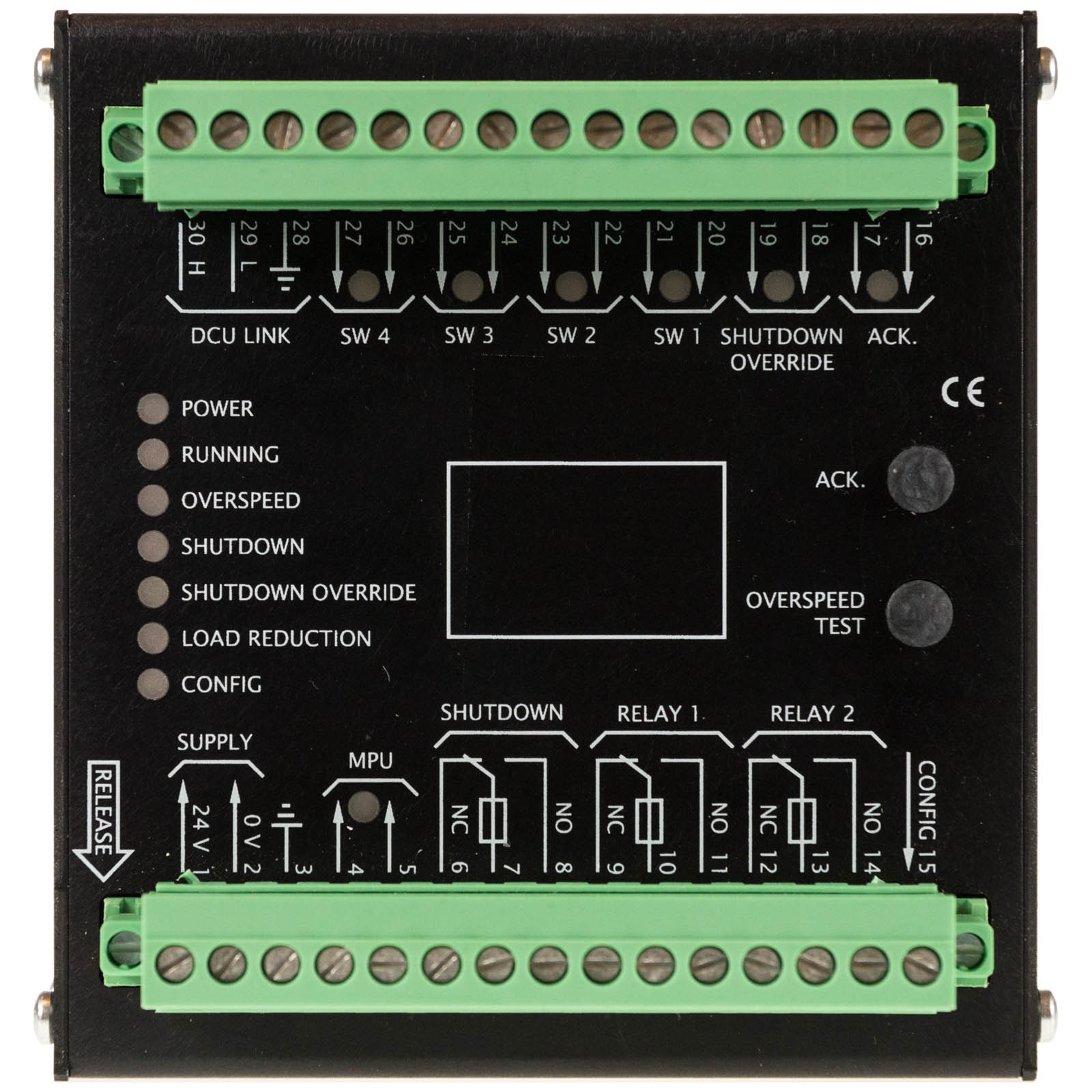

The SDU 404 is equipped with local fault and channel status indications, local acknowledge, reset and overspeed test mode required by classification society rules during local survey and commissioning.

Designed to be used with either the DCU 410E or the DCU 210E, this unit is automatically configured from the DCU, just requiring a twisted pair “SDU Link” between each component. “Plug and play” installation provides valuable cost and resource reductions with no programming and no configuring.

Compatible products

The SDU 404 can be attached to the following products:

Engine Controllers

Legacy Engine Controllers

Note! When replacing an old Marine Pro unit with a new we recommend to update the Firmware of other vital components as well.

Additional information

Size

w 101 x h 105 x d 45 mm

Weight

0.4 kg
