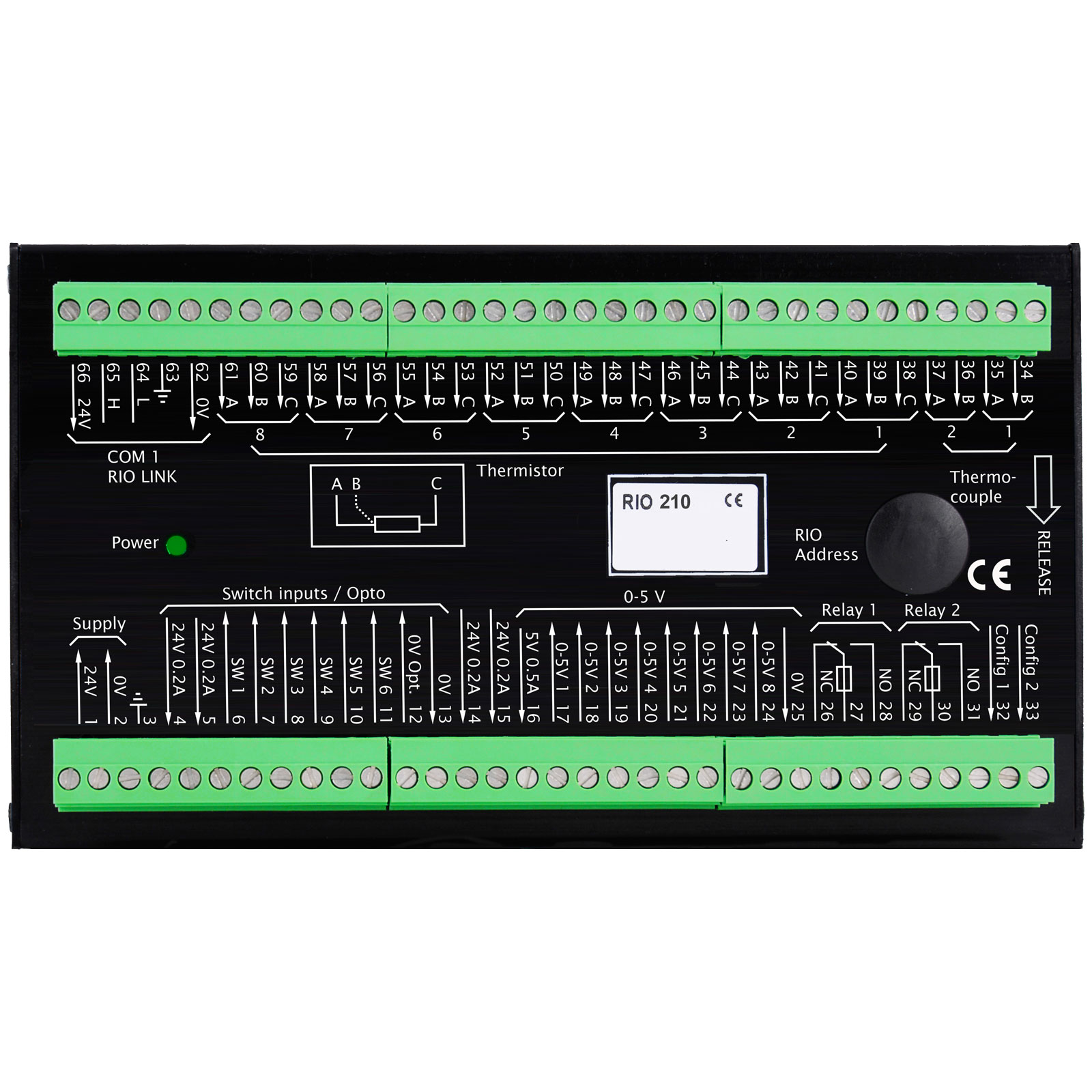

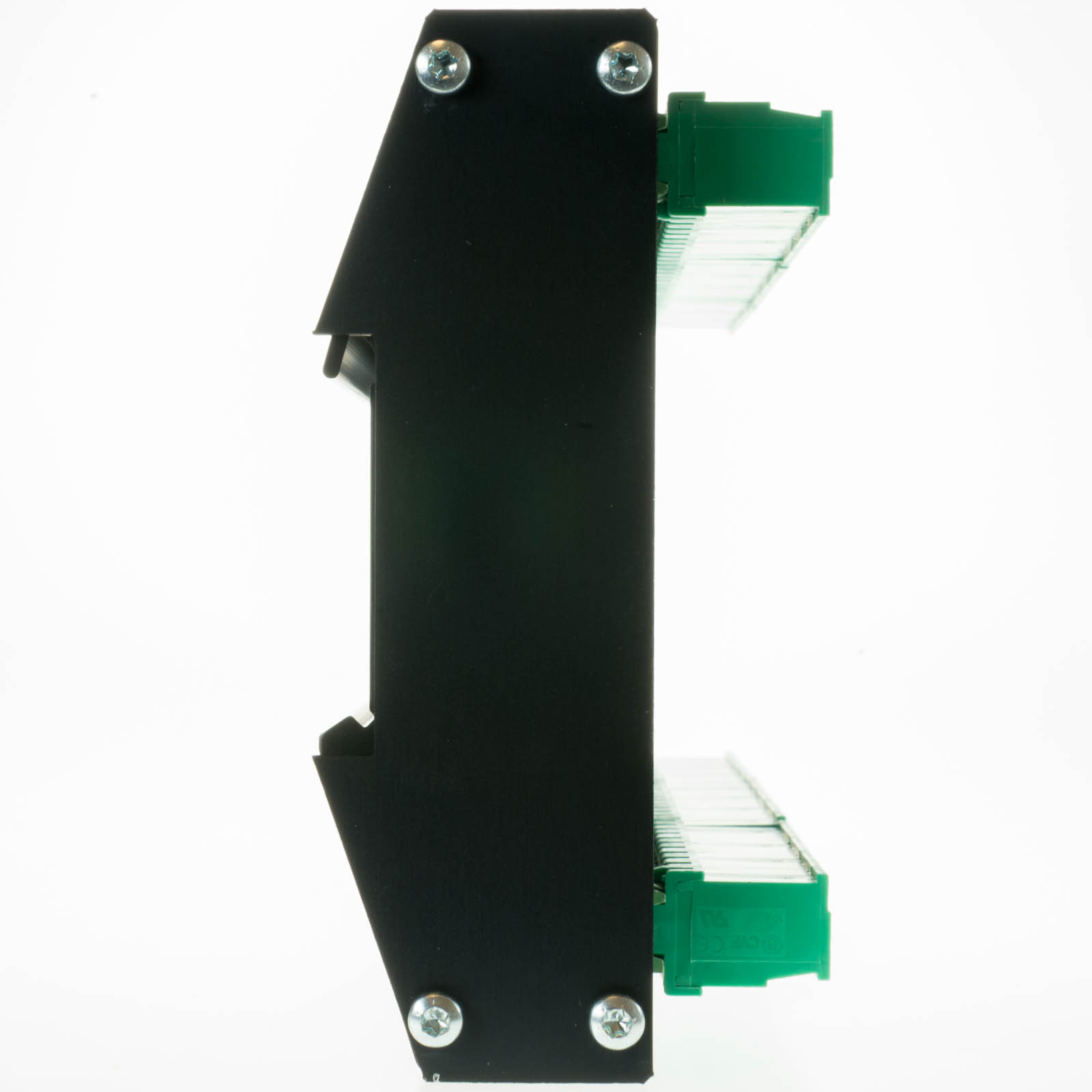

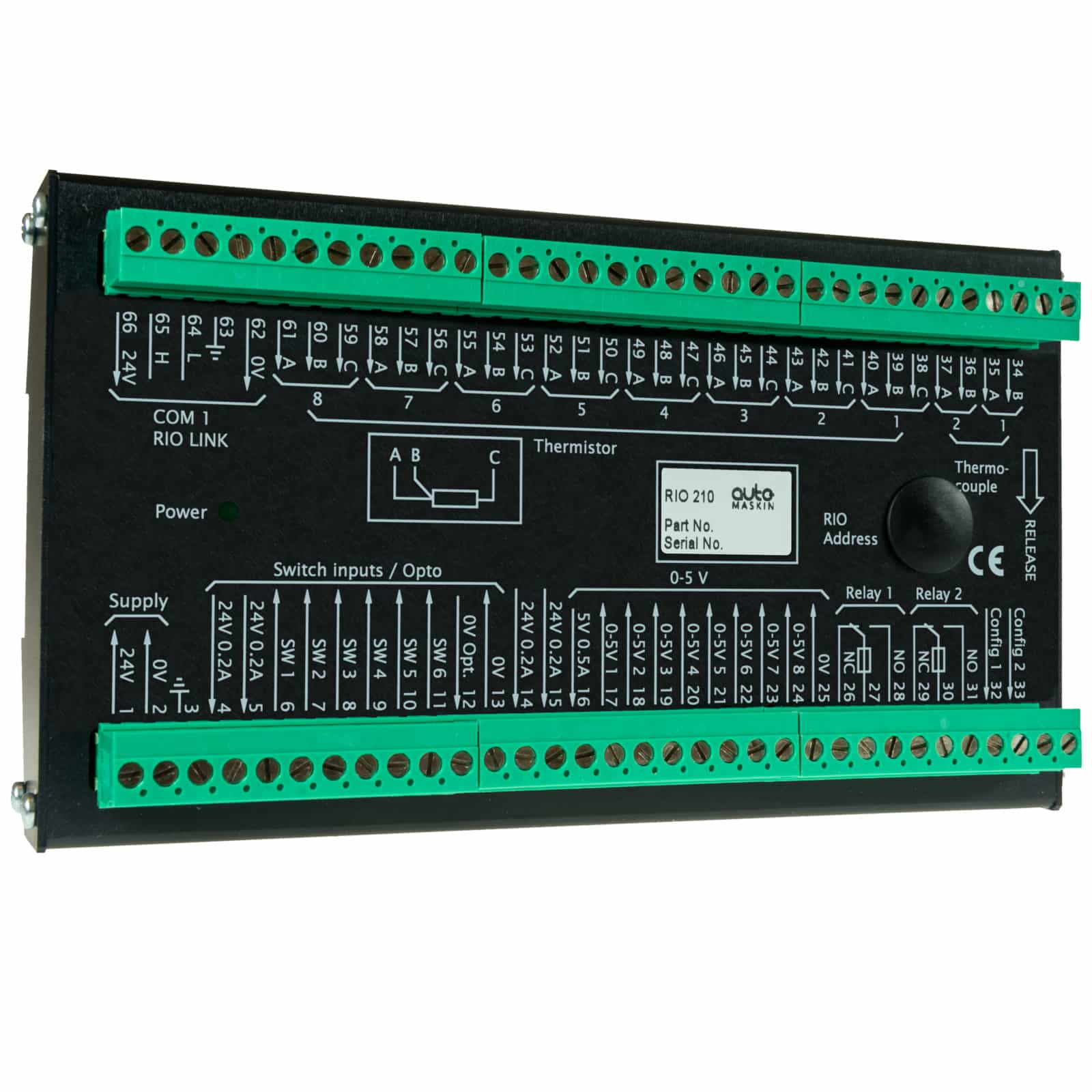

RIO 210 Remote I/O Unit

At a glance

6 channels for configurable switch inputs
8 channels for configurable Thermistor inputs
8 channels for configurable 0-5V inputs
2 channels for configurable K Type thermocouple inputs
2 configurable 24v DC outputs 2 configurable relay outputs [NO/NC]
2 wire RIOLink databus to DCU simplifies wiring

Why select the RIO 210

Compatible with all Marine Pro DCUs
Connects to DCU via a simple two wire twisted pair
Provides flexibility to integrate differing applications into a standard package
Can be placed close to sensor package to reduce wiring complexity and runs
Provides connectivity to lower cost sensor package
No on site configuring required

The unit is easily interfaced to the engine panel on the provided 2-wire RIO Link.

The unit is especially adapted for smaller engines and very well suited with the 200 Series of engine panels.

The RIO 210 has a good mix of switch, thermistor/PT100, 0-5V and thermocouple input channels. It also has a number of relay and binary outputs. Please consult the datasheet for exact number of input- and output channels.

The RIO 210 is non-classed but still fully compatible with the classed 400 Series, in projects where the 400 Series is used in a non-classed situation.
