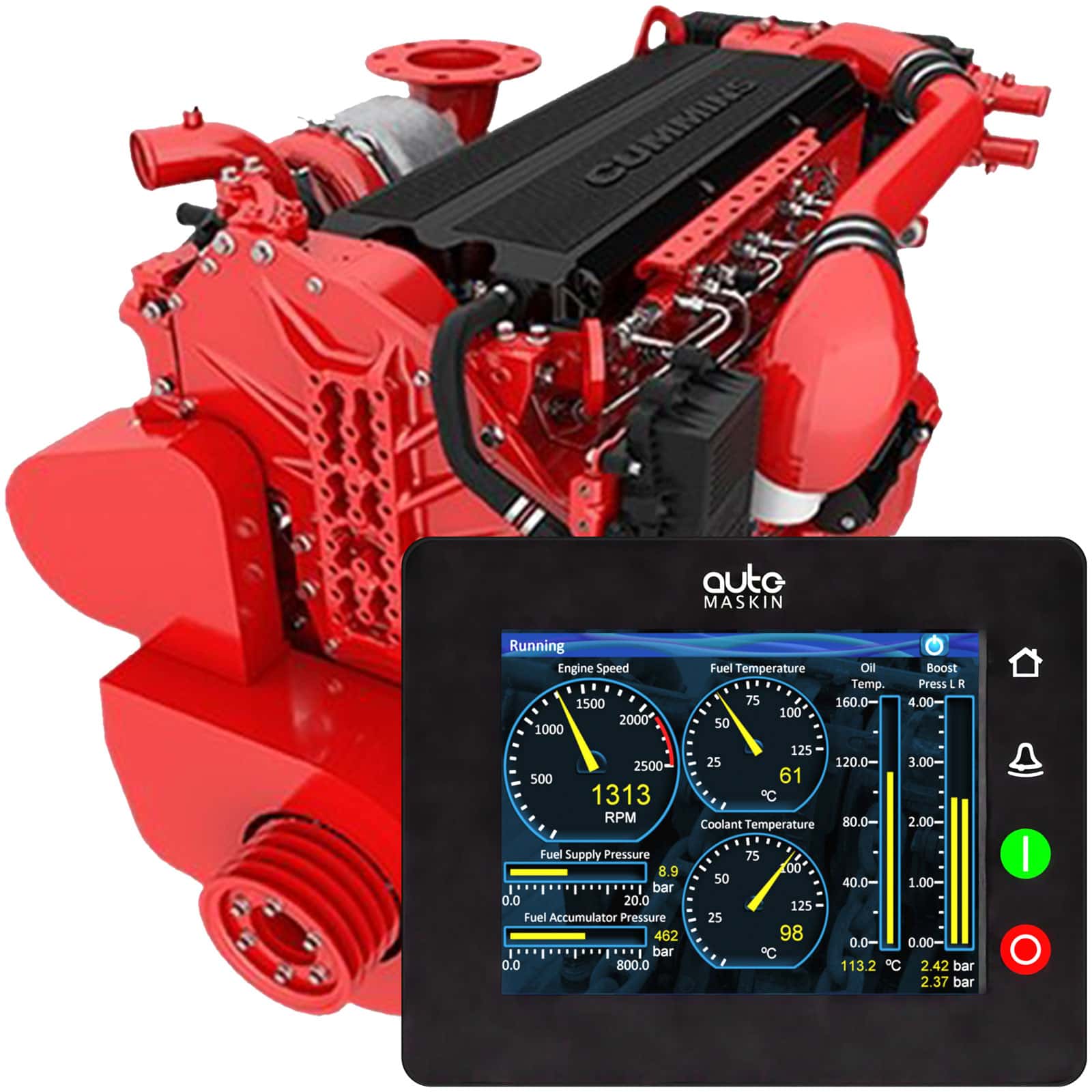

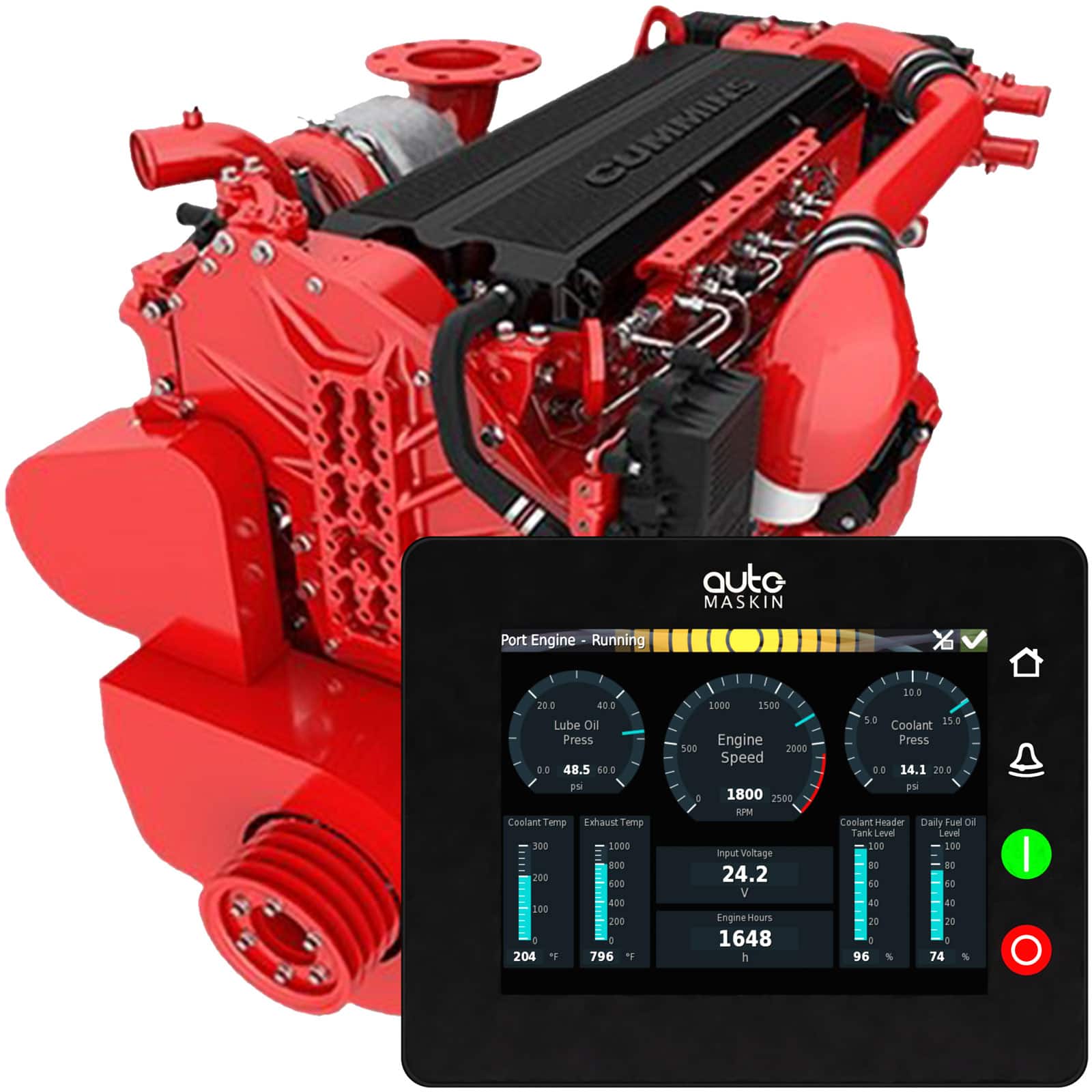

The ProConnect X15 is a “Plug and Play” pre-wired control system for Cummins X15 engines.
ProConnect X15
Description
Connect your Cummins X15
- A “Plug and Play” pre-wired control system for Cummins X15 engines
- Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E Engine Controller and a USB stick with pre-defined configuration files
- Pre-defined configuration files means no programming
- The DCU 210E features and functions complement the engine capability
- Marine Broadcast compatible for cloud based remote monitoring
- No special software required; if additional configuration is needed, it can be done using any web browser
- Full system warranty from Auto-Maskin means “Peace of Mind”
- Supported globally by the Auto-Maskin network
Read more about the DCU 210E Engine Controller
Feature-rich
- Dedicated Start/Stop controls
- Operator-selectable languages
- Operator-selectable Metric/US units
- All data accessible on Modbus TCP/RTU
Robust, heavy-duty, reliable
- The touchscreen can be operated with gloves on
- Sunlight-capable touchscreen
- IP56 compliant including connectors
- Tough marine-grade construction
Dedicated to engine
- “Plug and Play“ harness kit with connectors matched to the engine
- Ready for additional customer-installed options
- Preconfigured files
- Full J1939 CAN bus integration
Easy to use
- Large, clear colour display
- Icon-based menus
- Dedicated alarm banners
- One-touch alarm list, counters and a protected event log
Why customers select Marine ProConnect
- Fast, clear icon-based information promotes safe and efficient operation
- Pre-engineered solution means fast, low-cost installation
- Quality-assured solution presents low business and operational risk
- Aligns to same architecture as Cummins C Command
- Looks really good!
The ProConnect kits:
Additional information
Harness length | 10 ft / 3 m, 25 ft / 7.6 m, 50 ft / 15.2 m, 75 ft / 22.8 m |
---|---|
Attributes for: | DCU 210E |
Size | w 167 x h 135 x d 68 mm |
Cut out | w 156 x h 124 mm, Access depth 90 mm |
Screen | 262144 colors, Resolution 640 x 480 pixels |
IP | IP56 |
