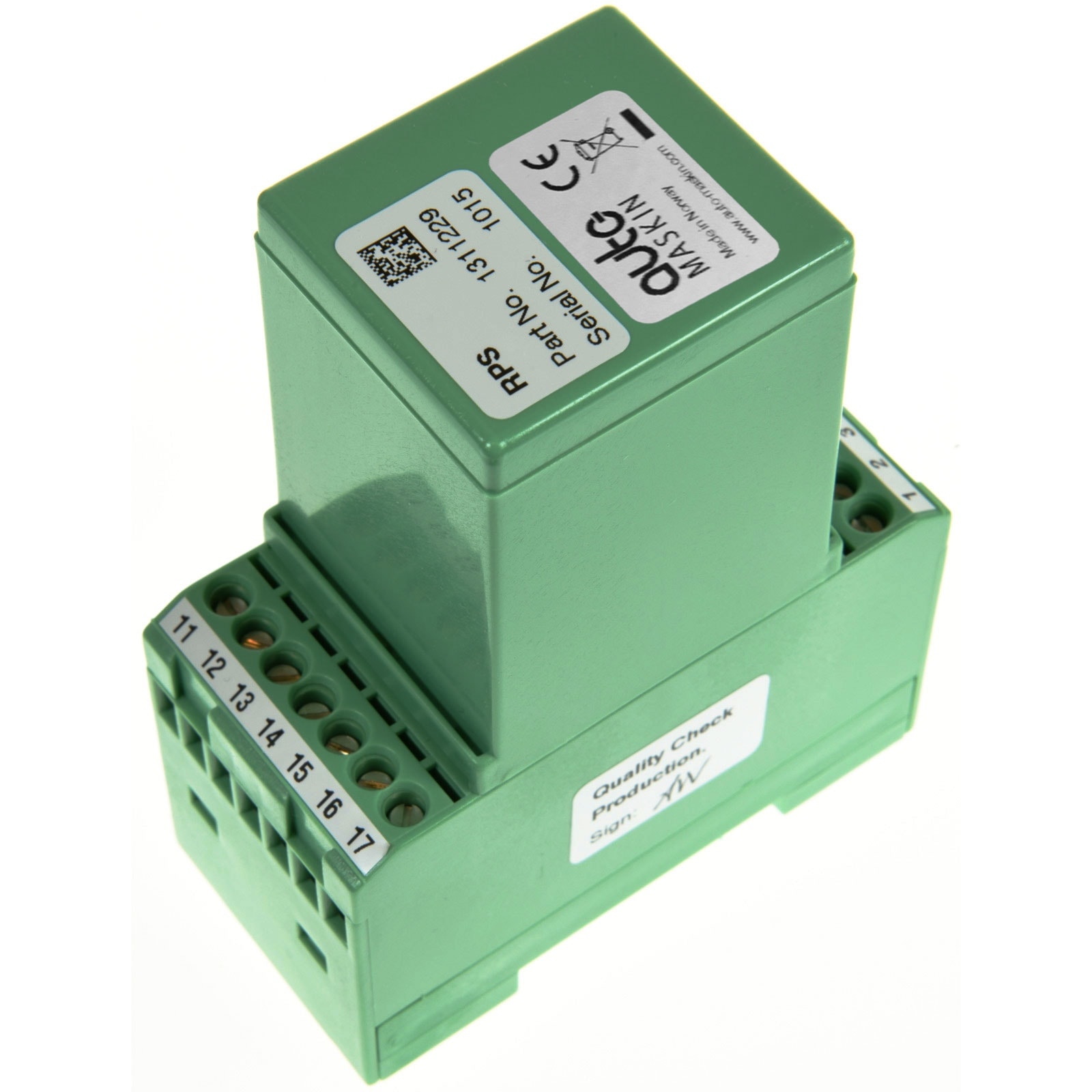

RPS - Redundant Power Selector

Description

At a glance

Selects between Primary and Secondary 24 VDC inputs
Provides one 24 VDC / 16 A (max) supply output
Returns supply to Primary on resumption of power
Rapid switching protects critical equipment
Isolated 0 V and 24 V between Primary and Secondary inputs

Why choose the RPS

Compatible with all 24 VDC equipment and power sources
Reduces operational risk
Outputs indicating which input supply is in use
No special tools, cabling or configuration required
DIN rail mounted and is an easy retrofit/upgrade

The RPS, Redundant Power Selector has been designed specifically to protect critical componets during failure of a primary DC power supply.

The unit, which has a continuous capacity of up to 16 A, rapidly changes from a primary to a secondary power source once the primary voltage falls to a predetermined level. Why is this important? Many critical pieces of electronic equipment (such as engine ECMs) are sensitive to transient low voltages. Unless the power is transitioned quickly and smoothly, there is a risk of these components switching off momentarily.

The RPS ensures a safe and reliable handover with built-in smoothing circuits. Two status outputs—Primary OK and Secondary OK—enable external systems to monitor or respond to the state of each input power source.

Additional information

Size	w 38 x h 97 x d 75 mm
