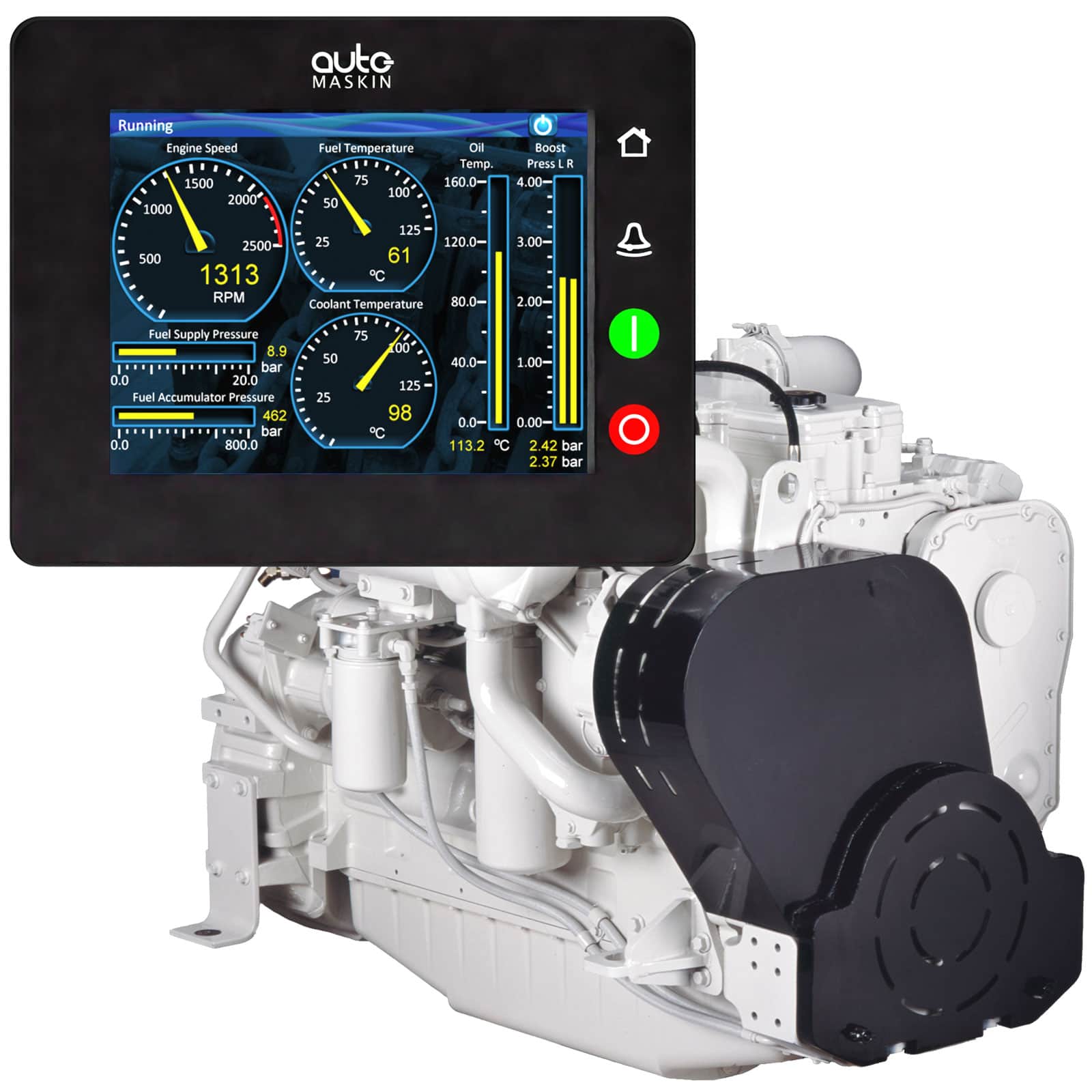

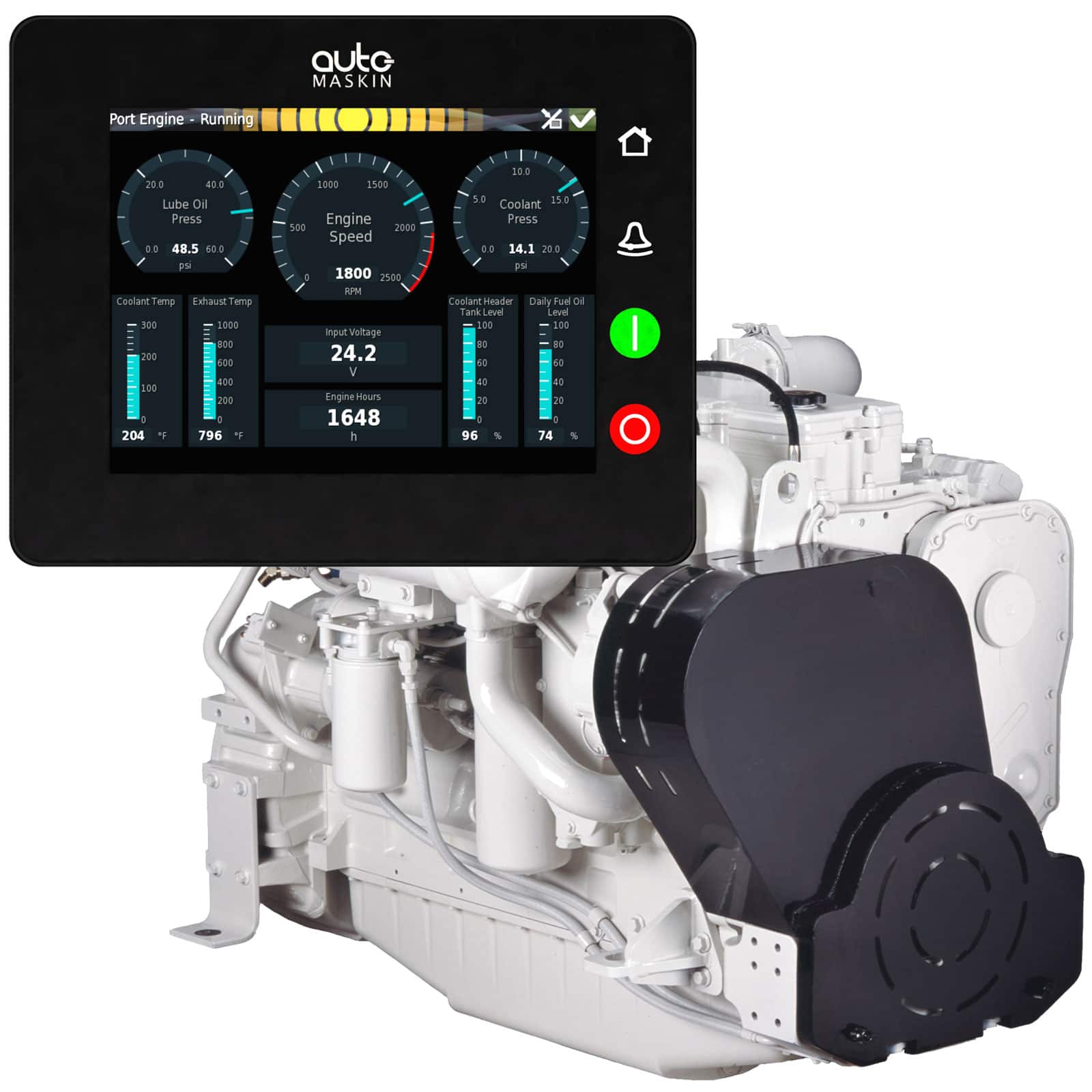

ProConnect C1

Connect your Cummins QSB6.7, QSC, QSL9 or QSM11

• A “Plug and Play” pre-wired control system for Cummins propulsion engines
• Fits Cummins QSB6.7, QSC, QSL9 and QSM11

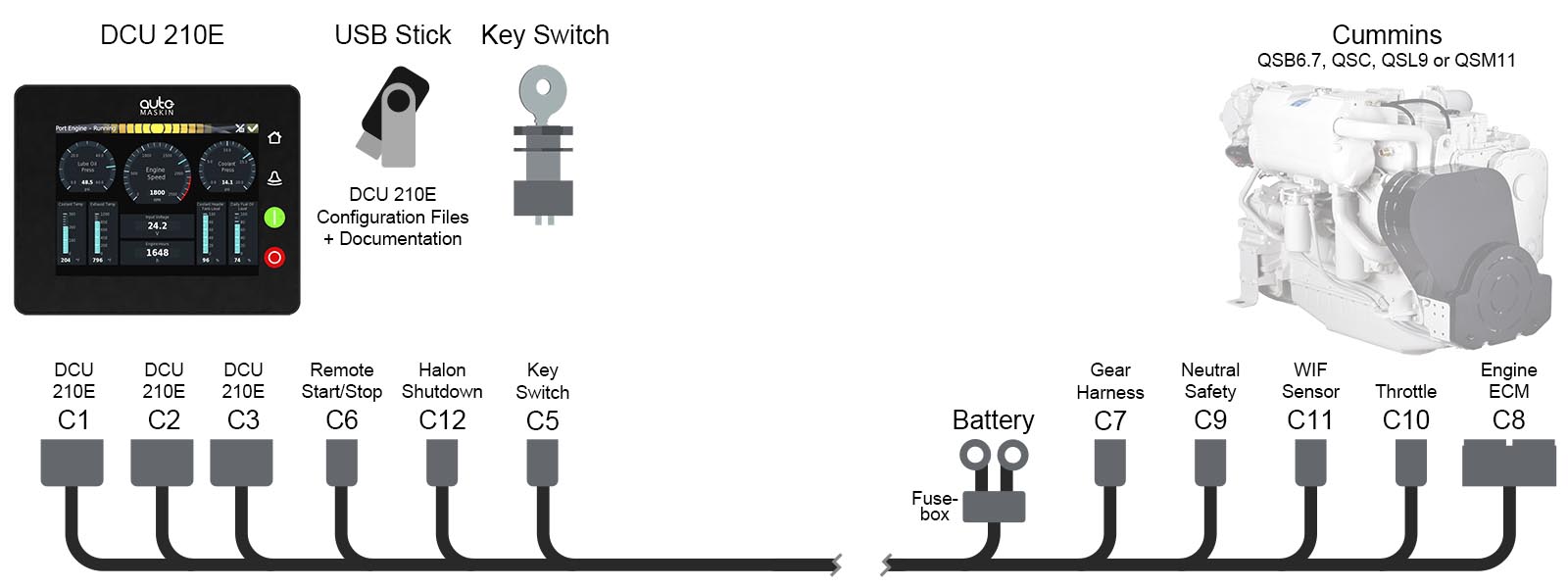

• Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E Engine Controller and a USB stick with pre-defined configuration files
• Pre-defined configuration files means no programming
• The DCU 210E features and functions complement the engine capability
• Marine Broadcast compatible for cloud based remote monitoring
• No special software is required; if any additional configuration is needed, it can be done using any web browser
• The full system warranty from Auto-Maskin means “Peace of Mind”
• Supported globally by the Auto-Maskin network

Read more about the DCU 210E Engine Controller

Feature-rich

• Dedicated Start/Stop controls
• Operator-selectable languages
• Operator-selectable Metric/US units
• All data accessible on Modbus TCP/RTU

Robust, heavy-duty, reliable

• The touchscreen can be operated with gloves on
• Sunlight-capable touchscreen
• IP56 compliant including connectors
• Tough marine-grade construction

Dedicated to engine

• “Plug and Play“ harness kit with connectors matched to the engine
• Ready for additional customer-installed options
• Preconfigured files
• Full J1939 CAN bus integration

Easy to use

• Large, clear colour display
• Icon-based menus
• Dedicated alarm banners
• One-touch alarm list, counters and a protected event log

Why customers select Marine ProConnect

• Fast, clear icon-based information promotes safe and efficient operation
• Pre-engineered solution means fast, low-cost installation
• Quality-assured solution presents low business and operational risk
• Aligns to same architecture as Cummins C Command
• Looks really good!

The ProConnect kits:
