DCU 408E Engine Controller

The DCU 408E is a base building block to build a supervision system for both variable speeds (propulsion or pumps) or fixed speed (generating set) diesel engines. It provides the same level of functionality as it’s sibling, the DCU 410E Engine Controller, without a display and input buttons.

It’s ideal for installations with small engine room compartments.

SKU: 1006510 Category: Engine Controllers Tags: Classed, Engine Controller, Marine Pro 400

Description

The DCU 408E is the base building block to build a supervision system for both variable speeds (propulsion or pumps) or fixed speed (generating set) diesel engines.

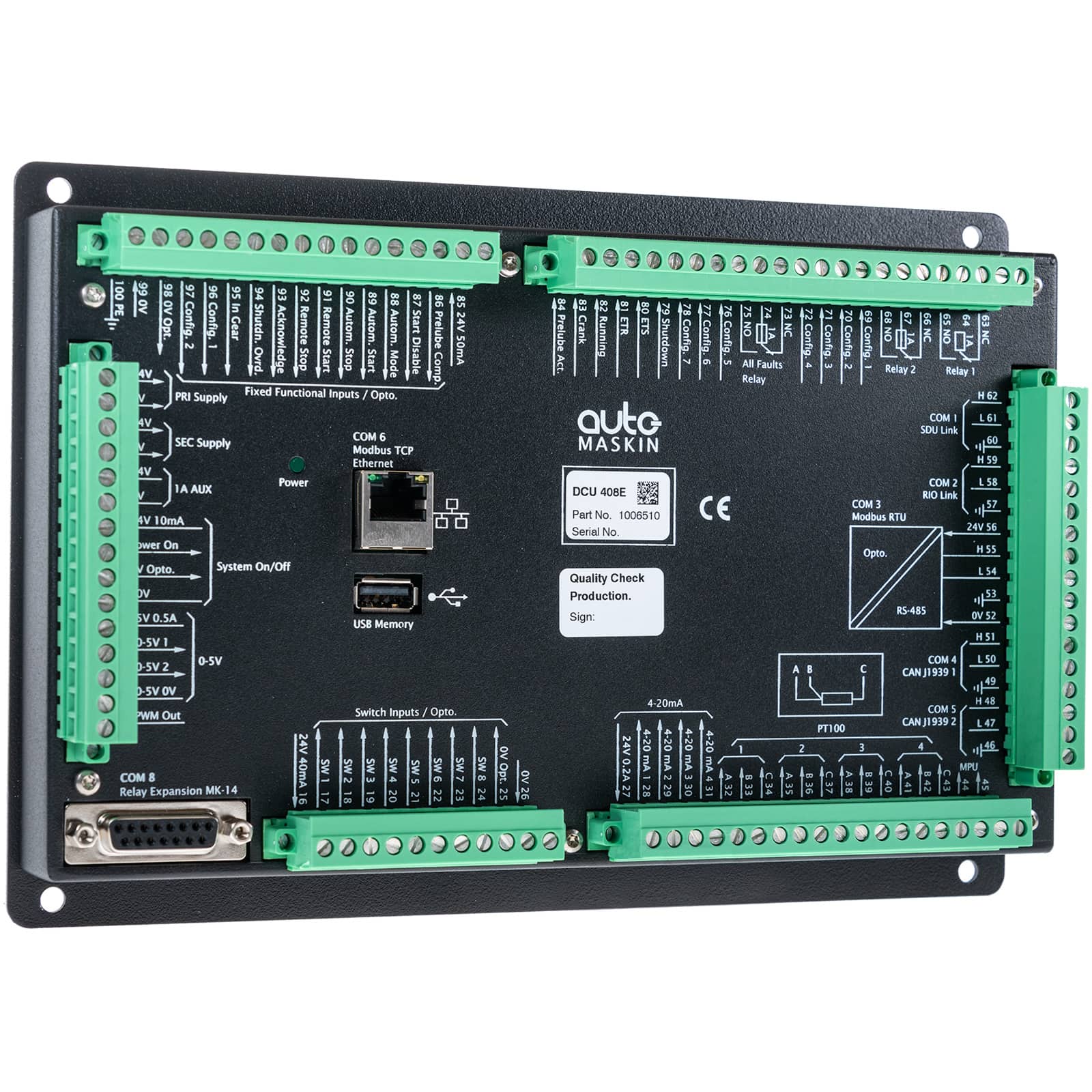

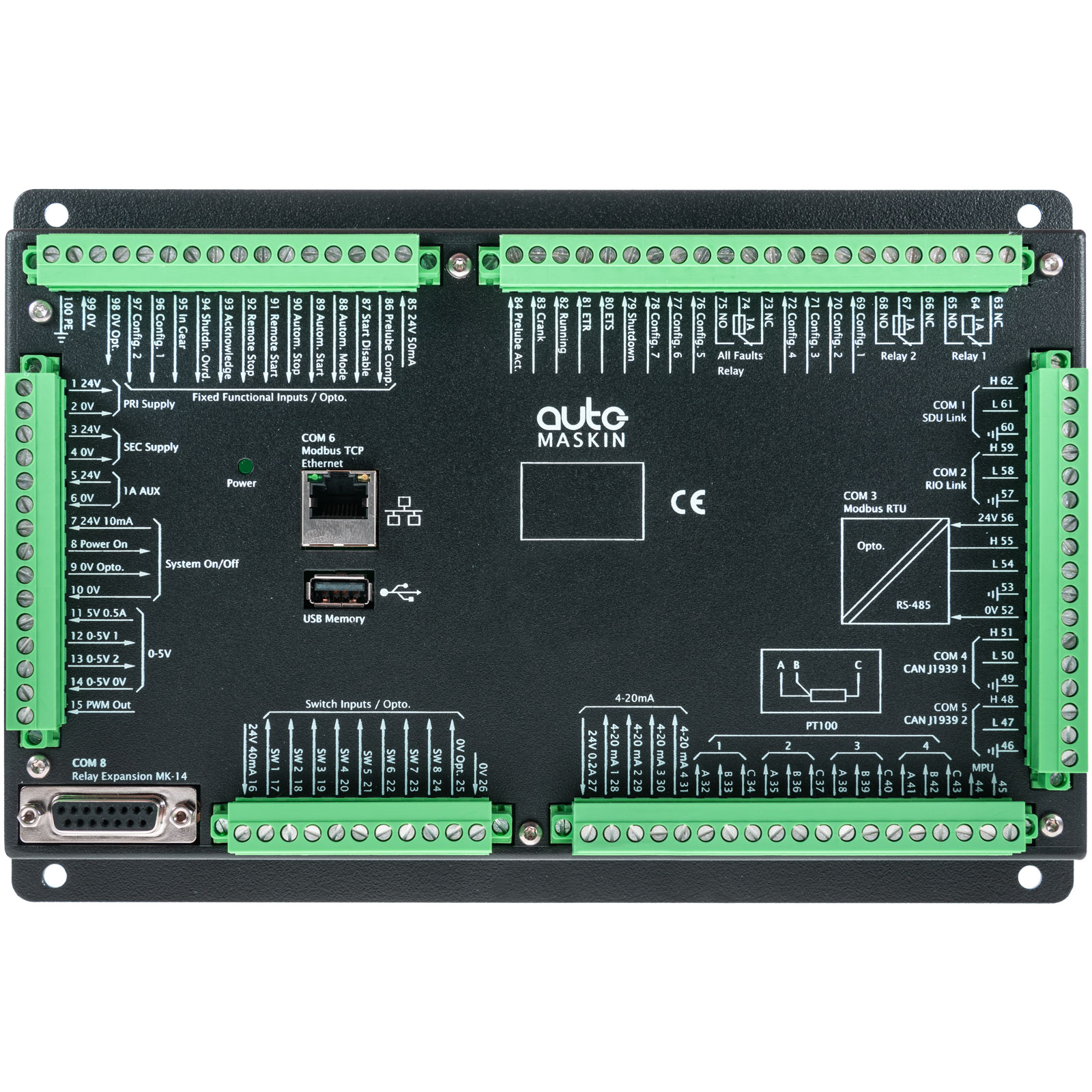

The DCU 408E accepts input data from the engine J1939 CAN bus link plus multiple physical I/O, which can be expanded with expansion units. It can communicate with the ships alarm system on CANopen and Modbus RTU, as well as Modbus TCP on standard Ethernet. The DCU 408E also provides engine control logic and the outputs required, including but not limited to, pre-lubrication control, start & stop signals, both ETR and ETS, plus remote interfaces for these functions. Connections are made via clearly labeled connectors on the rear of the panel and need no special tools. Finally, the DCU 408E works best together with Marine Pro Remote Panels but can also be used in conjunction with third-party remote systems. It also works well with the Marine Broadcast, a cloud-based service giving users on any remote device running a standard web browser access to the alarm list of the connected vessel.

Why more customers select the DCU 408E

“Plug and Play” connectivity to multiple remote panels
Low-cost option when no local display required
Accepts multiple sensor standards and twin J1939 networks
IACS Class Approved
Intuitively configurable using the built-in web server
No special software, cables or tools required
Marine Broadcast compatible for cloud based remote monitoring

The ability of the unit to connect to other ships systems without sophisticated software or specialist tools makes it installable and usable by nonexperts. Customizable by a simple laptop with a web browser and a standard Ethernet cable, the password protected areas allow more flexible configuring or customization when required.

Same hardware for many applications

Holds internally up to 50 customer selectable configuration files via a “startup wizard”
Connectable to multiple engine types and or ships systems
Suitable for fixed and variable speed applications

No specialist skills for startup or installation

Simple connectivity – no special tools
No special software, just an internet browser
Preloaded configurations to meet Classification Society rules for UMS

Connect easily to other ship systems

Ethernet connected means literally “plug & Play”
Simple two wire Modbus connectivity when needed
Expandable to include other vessel parameters

Accountability

Secure historical event and alarm list
Can link to third-party Ship Management and remote telemetry systems

Web-based software

No specialist programming or configuration skills
Web server built-in
Local or remote updating

Compatible products

The DCU 408E can be attached to the following products:

Remote Panels

Note! If replacing an old DCU with a new it is recommended to update the RP Firmware as well or make sure it is at the same or higher level than the DCU.

Legacy Remote Panels

Note! If combining a new E-Series DCU with an old Legacy Remote Panel it is recommended to retrieve and use the old DCU Configuration file in order to avoid unknown messages displayed at the Remote Panel. In addition, it is recommended to update the Remote Panel Firmware to the latest revision available.
