Description
This product is discontinued and is replaced by the DCU 410E Engine Controller.
The DCU 410 is the base building block to build a supervision system for both variable speeds (propulsion or pumps) or fixed speed (generating set) diesel engines.

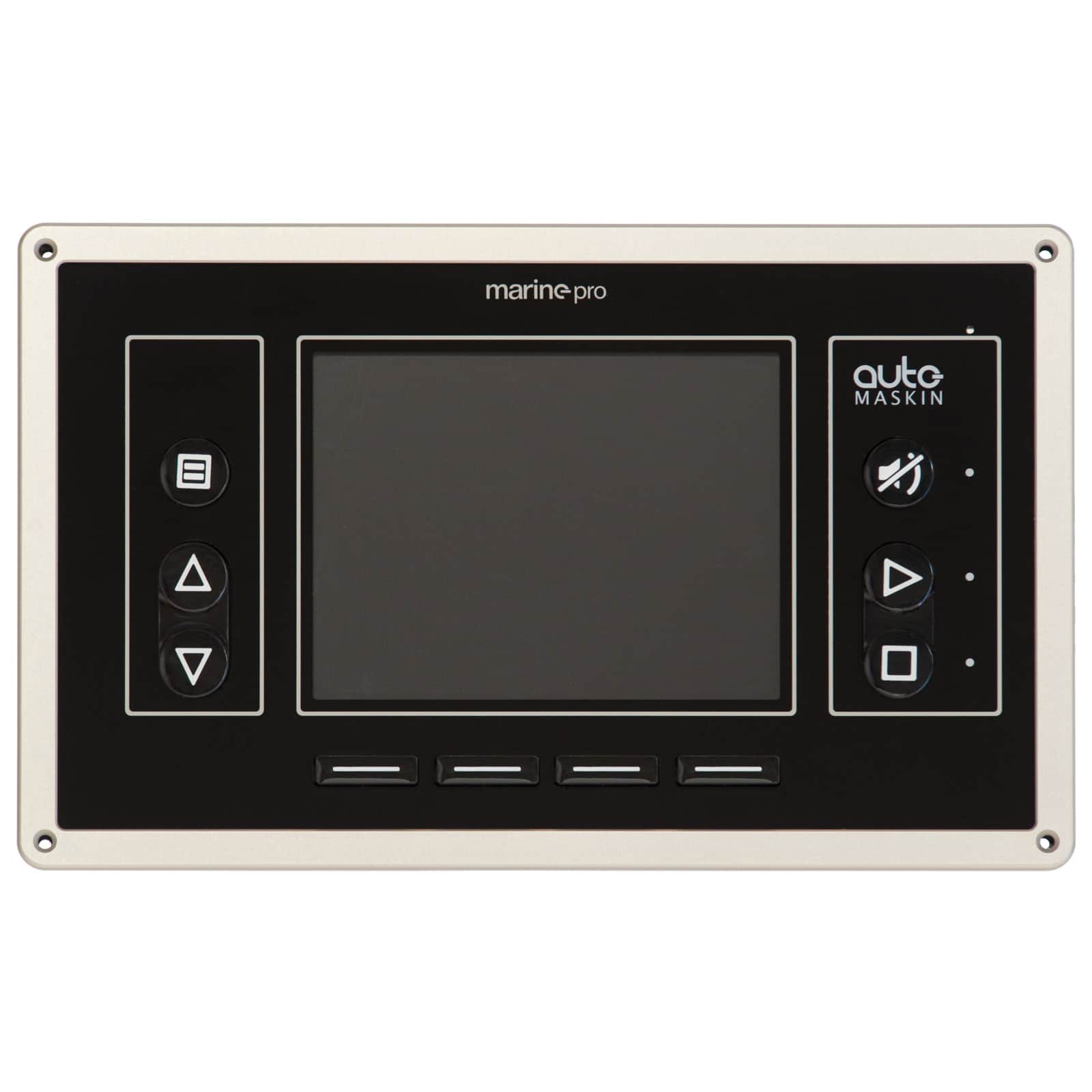

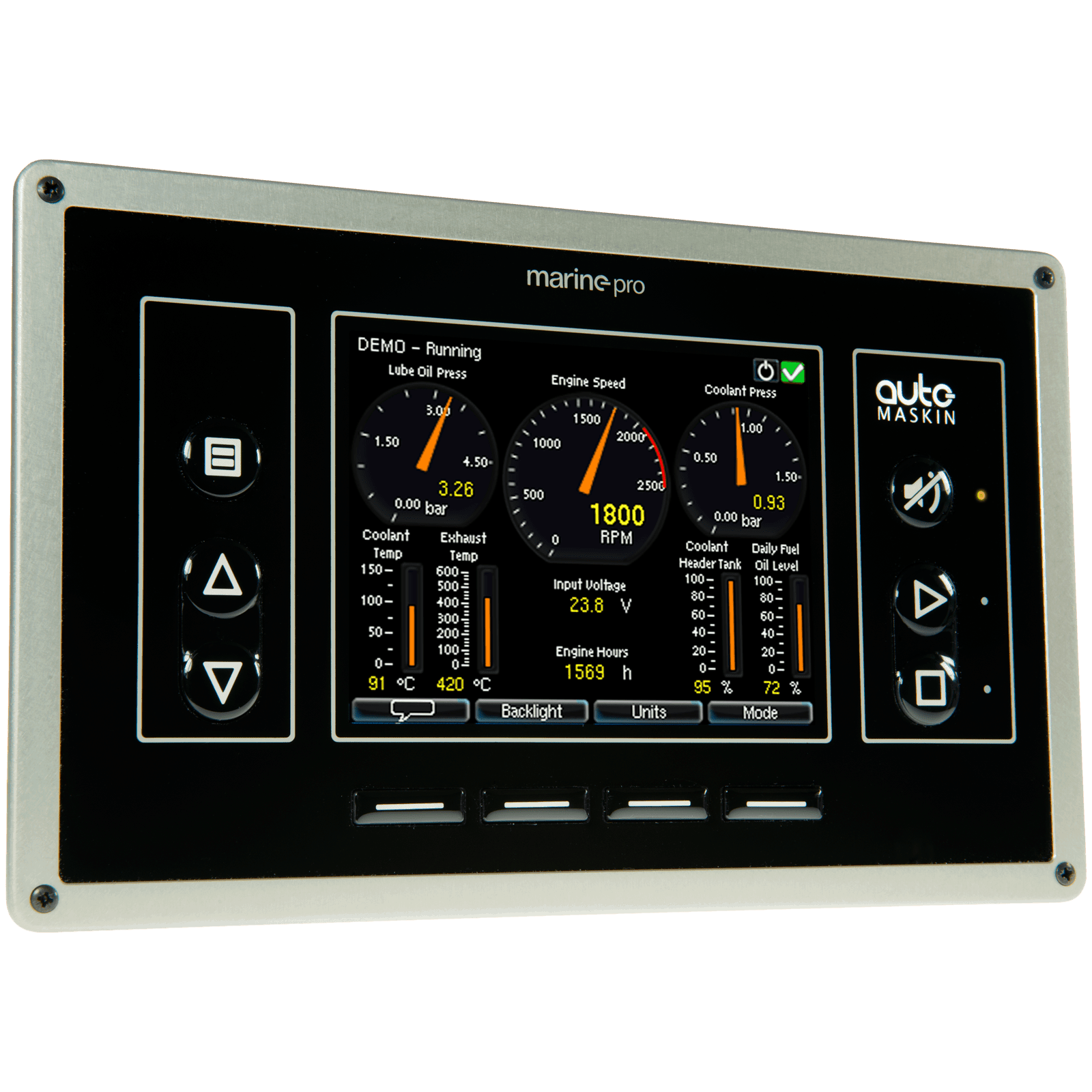

It is a compact unit comprising of a front face utilizing a 5.7” colour screen with 70 PPI resolution, which can be mounted to almost any flat surface with a cut-out.
The DCU 410 accepts input data from the engine J1939 CAN bus link plus multiple physical I/O, which can be expanded with expansion units. It can communicate with the ships alarm system on CANopen and Modbus RTU, as well as Modbus TCP on standard Ethernet.
The DCU 410 also provides engine control logic and the outputs required, including but not limited to, pre-lubrication control, start & stop signals, both ETR and ETS, plus remote interfaces for these functions.

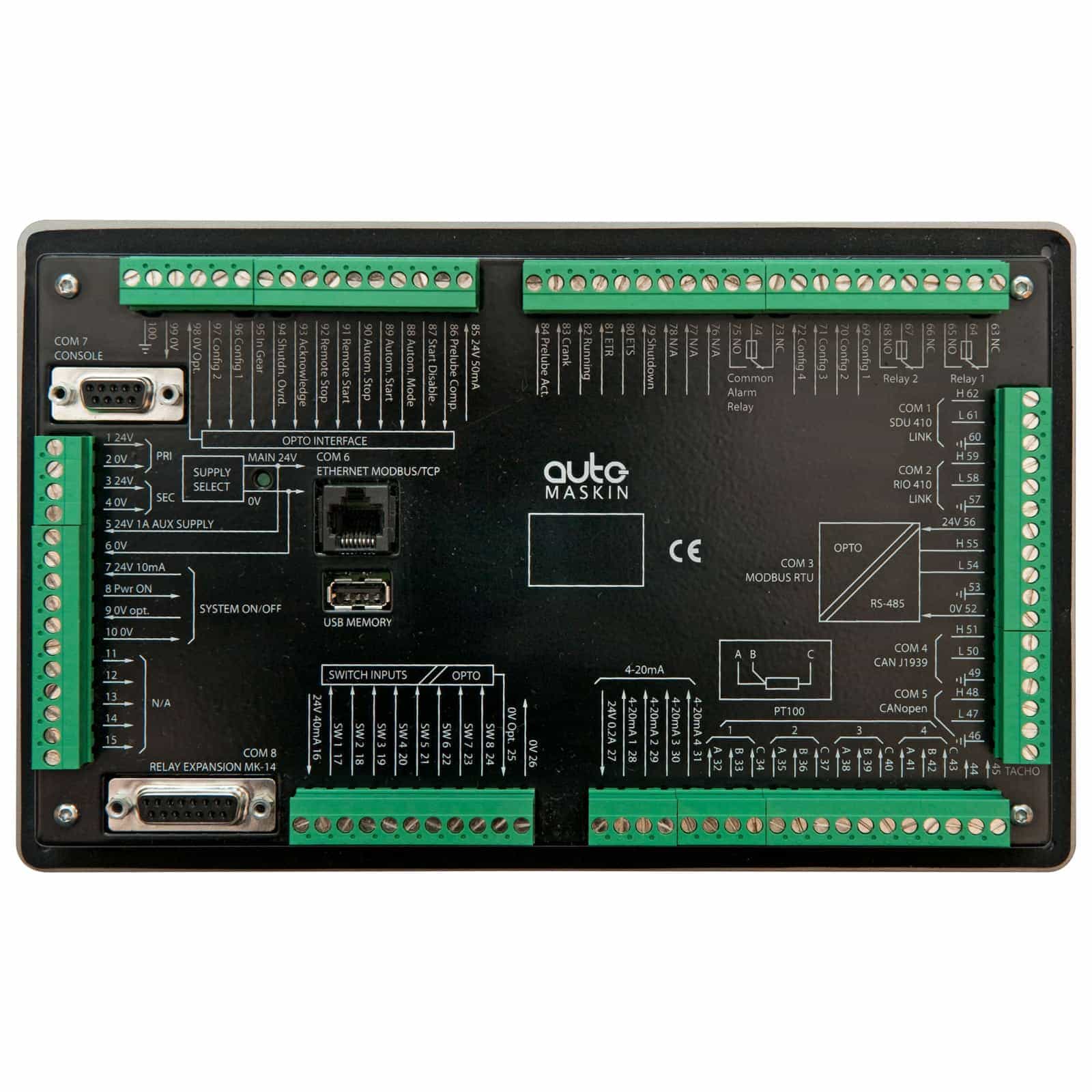

Connections are made via clearly labeled connectors on the rear of the panel and need no special tools.
Finally, the panel is fully prepared for remote panel integration and works seamlessly with the Auto-Maskin RP 410 panel(s).
Why more customers select the DCU 410
Customers of the DCU 410 find that the simplicity, the self-configuration and wide range of functionality are prime reasons to select this model across many applications and uses on board ships that require compliance with global standards. With more than ten languages including Chinese and Russian built in, the information the product displays is easy to understand, leading to better operational decisions.
The ability of the unit to connect to other ships systems without sophisticated software or specialist tools makes it installable and usable by nonexperts. Customizable by a simple laptop with a web browser and a standard Ethernet cable, the password protected areas allow more flexible configuring or customization when required.
With a literally “plug & play” capability, the DCU 410 configures all other elements of the Marine Pro system automatically.
Holds internally up to 50 customer selectable configuration files via a “startup wizard”
Connectable to multiple engine types and or ships systems
Suitable for fixed and variable speed applications
Pre printed connection function on units
Simple connectivity – no special tools
Pre loaded configurations to meet Classification Society rules for UMS
Ethernet connectivity means plug and play within global standards
Simple two wire communication via Modbus to Marine Pro I/O expansion modules
Affordable expandability to create a small ships alarm system
